29. Cylinder Head Disassemble

Tools Required
^ J 8062 Valve Spring Compressor
^ J 43184 Valve Spring Compressor Adaptor

IMPORTANT: Ensure that the valve train components are kept together and identified in order for proper re-installation in their original position.

CAUTION: Wear safety glasses in order to avoid eye damage.

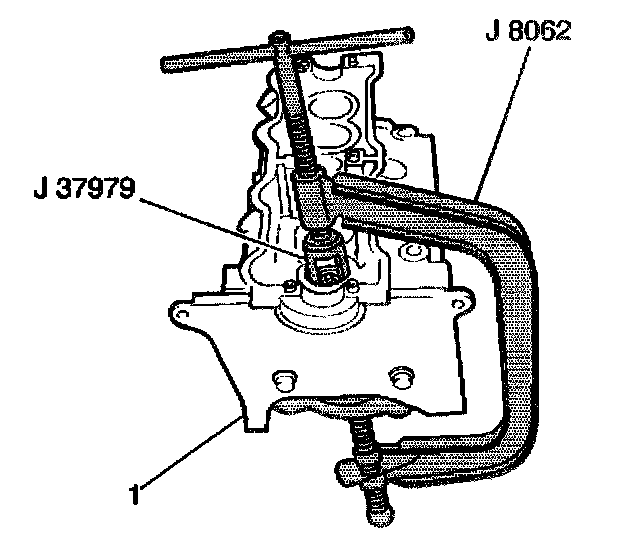

1. Compress the valve spring. Use the J 8062.





2. Remove the valve keepers (1).
3. Slowly release the J 8062 from the valve spring assembly.
4. Remove the retainer.
5. Remove the spring.

NOTICE: Do not damage the valve guide. Remove any burrs that have formed at the key groove by chamfering the valve stem with an oil stone or a file.





6. Remove the valve seal (1).
7. Remove the spring seats.
8. Remove the valve.
9. Remove the remaining valves.
