15. Oil Pump Removal

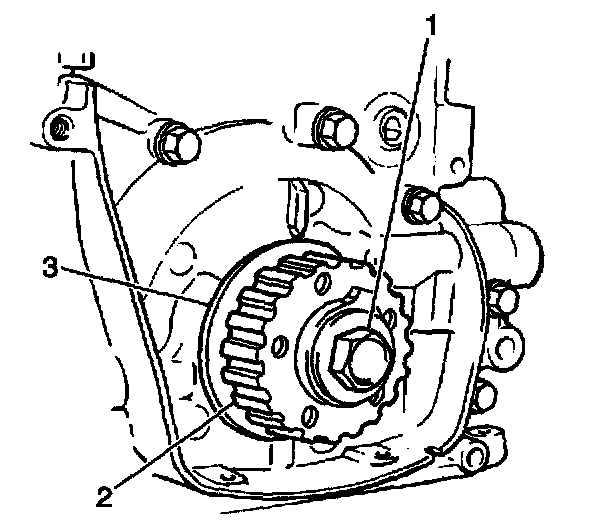

1. Remove the crankshaft timing gear bolt (1).
2. Remove the crankshaft timing gear (2).





3. Remove seven oil pump housing mounting bolts and the oil pump housing (5) from the cylinder block.
4. Remove the rotor plate pins from the oil pump (5).
