13. Cylinder Head Removal

1. Remove the eight cylinder head bolts from the vehicle.
2. Remove the cylinder head from the cylinder block.

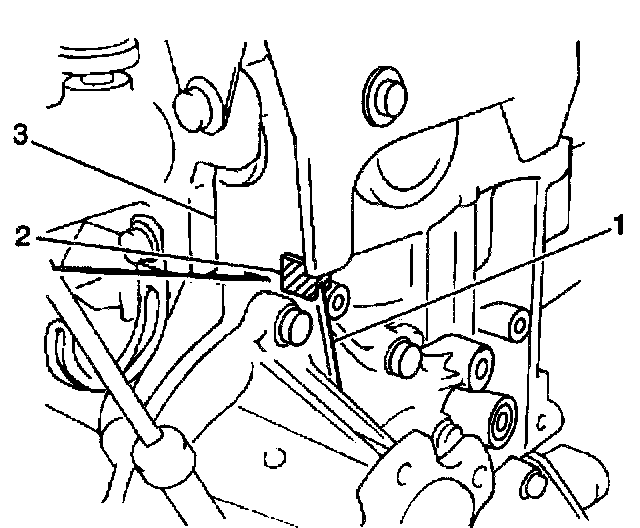

3. Remove the cylinder head gasket (1) from the cylinder block.





4. Remove the oil check valve (3) from the cylinder block (2).





5. Remove the cylinder head rubber seal (2) from the cylinder block.
