Starting and Charging
>>
Power and Ground Distribution
>>
Power Distribution Diagrams
>>
Schematics By Component Name
>>
Ignition Switch
Ignition Switch

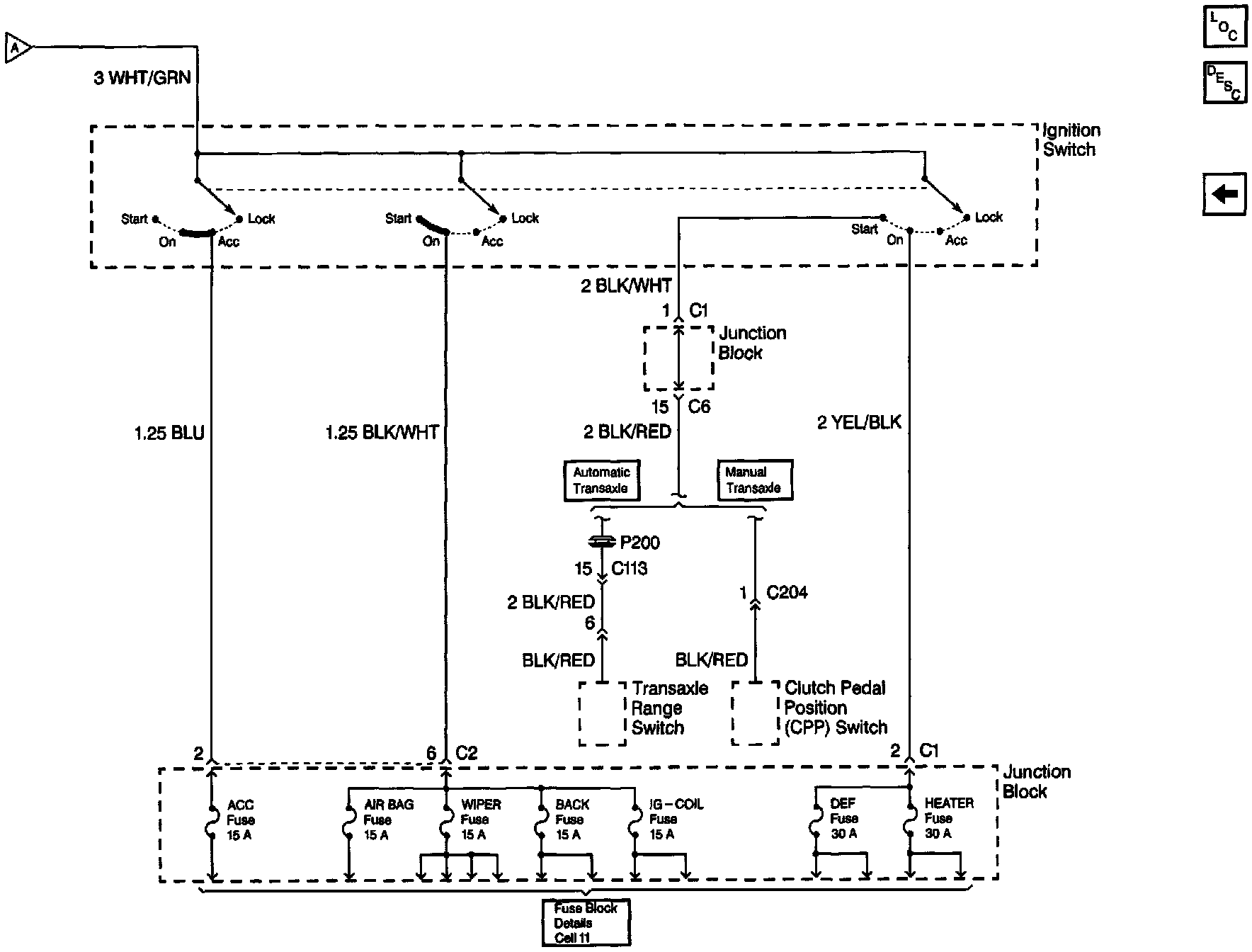

Power Distribution Schematics: Batt, Lamp, IG, ABS, PTC, FI, RDTR, A/C, Tail, Door Lock, H/L, L, R, Dome, Stop, Hazard Fuses (Part 2 Of 2):
