Home >> Pontiac >> 1999 >> Firefly (CANADA) L3-1.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lights >> Interior Lights Schematics >> Diode Module

Diode Module

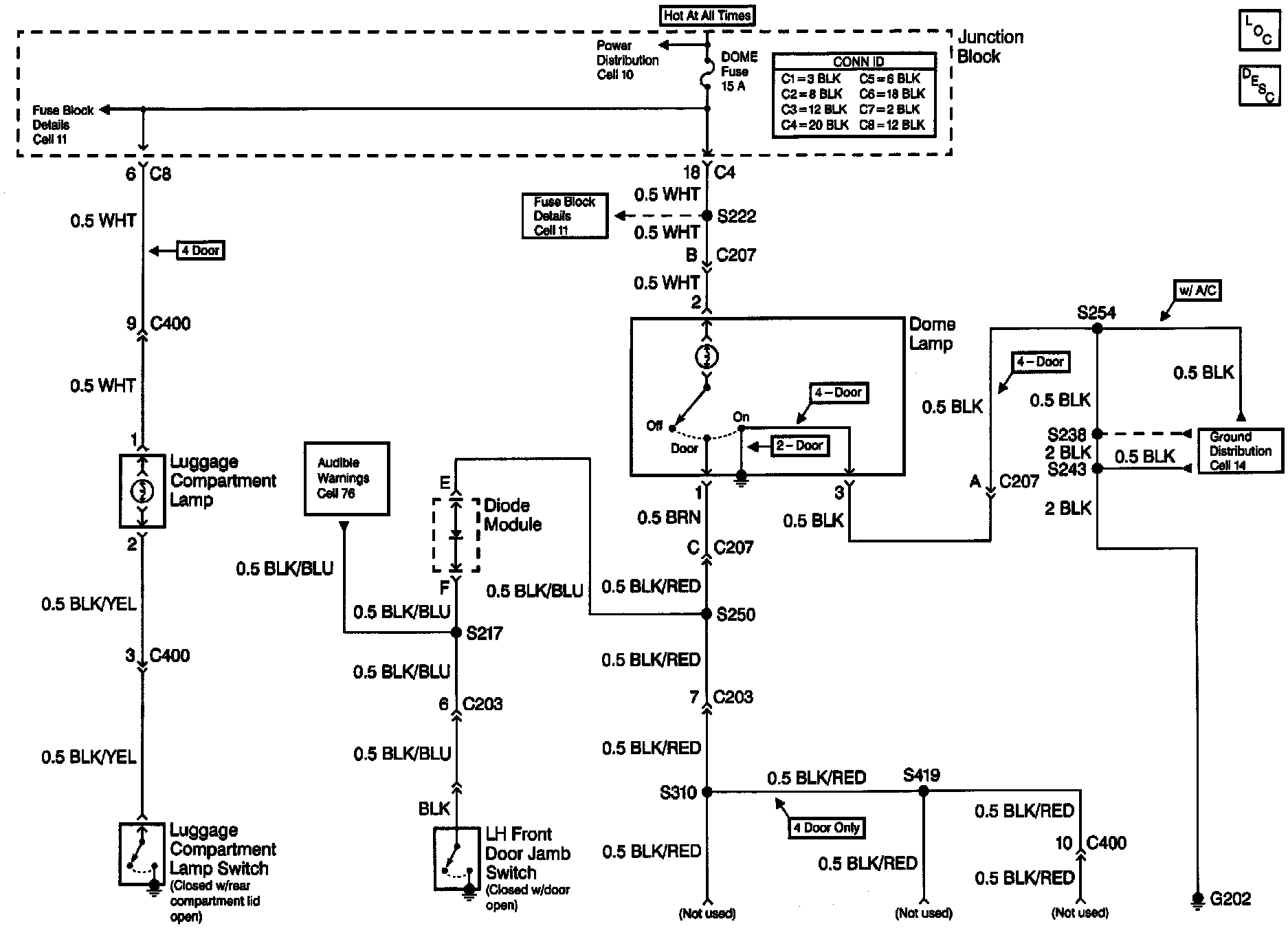

Interior Lights Schematics: Diode Module:
