Relay Box

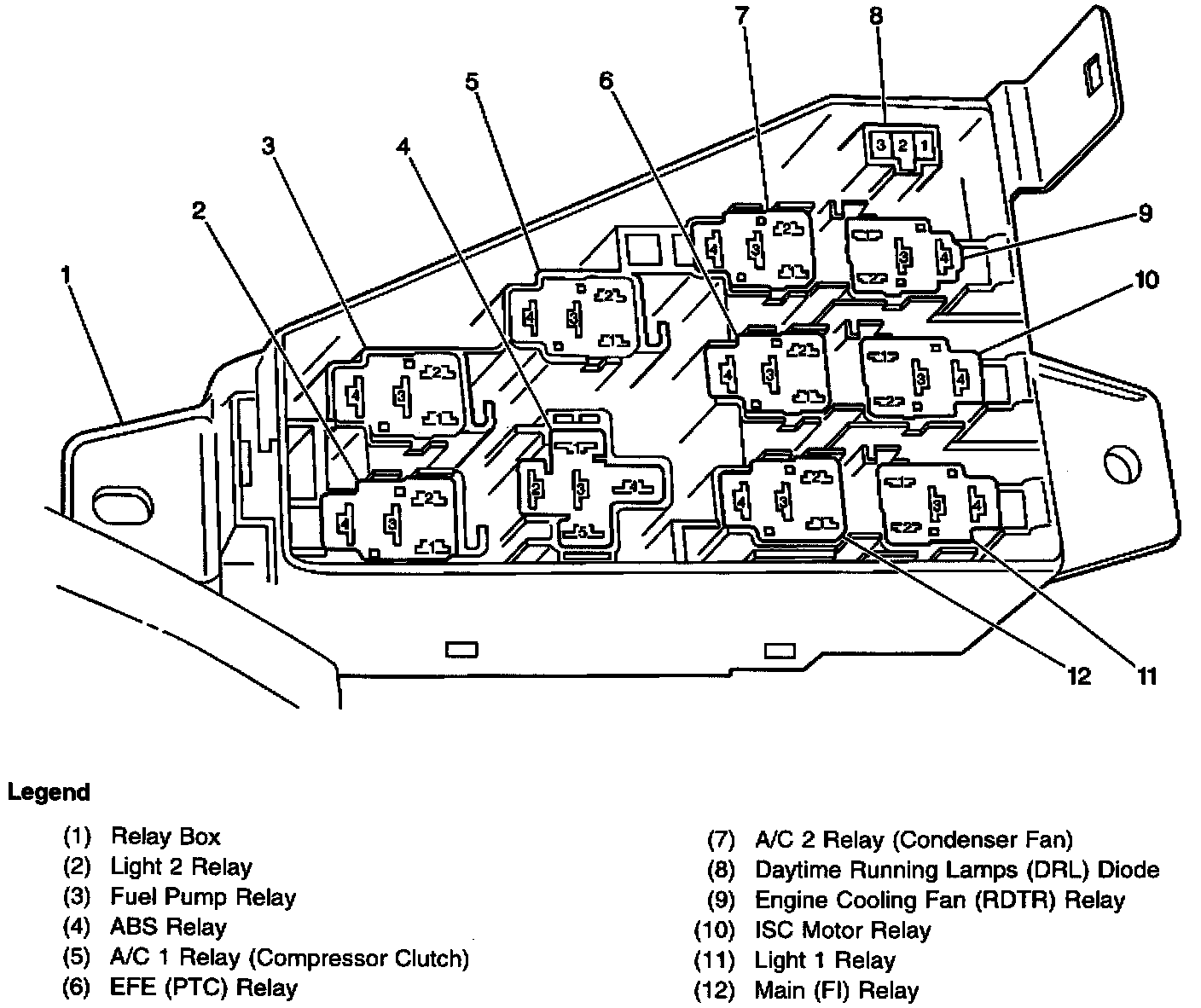

LH Engine Compartment (with ABS):




Relay Box:





Left front engine compartment, near the battery
