Luggage Compartment Harness

Rear Seatback-to-Rear-Window Shelf (4-Door):

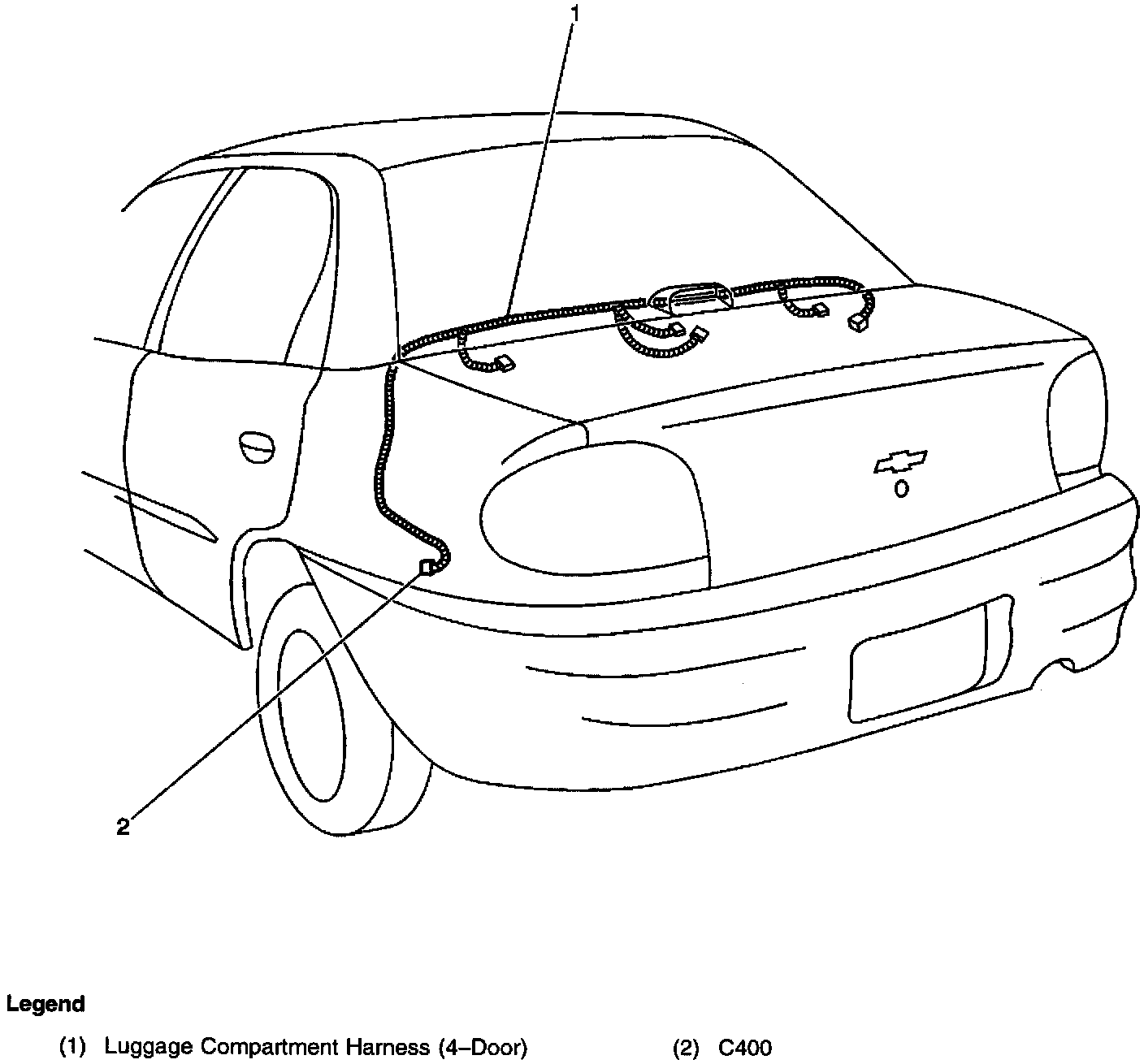

Luggage Compartment Harness Routing (4-Door):
