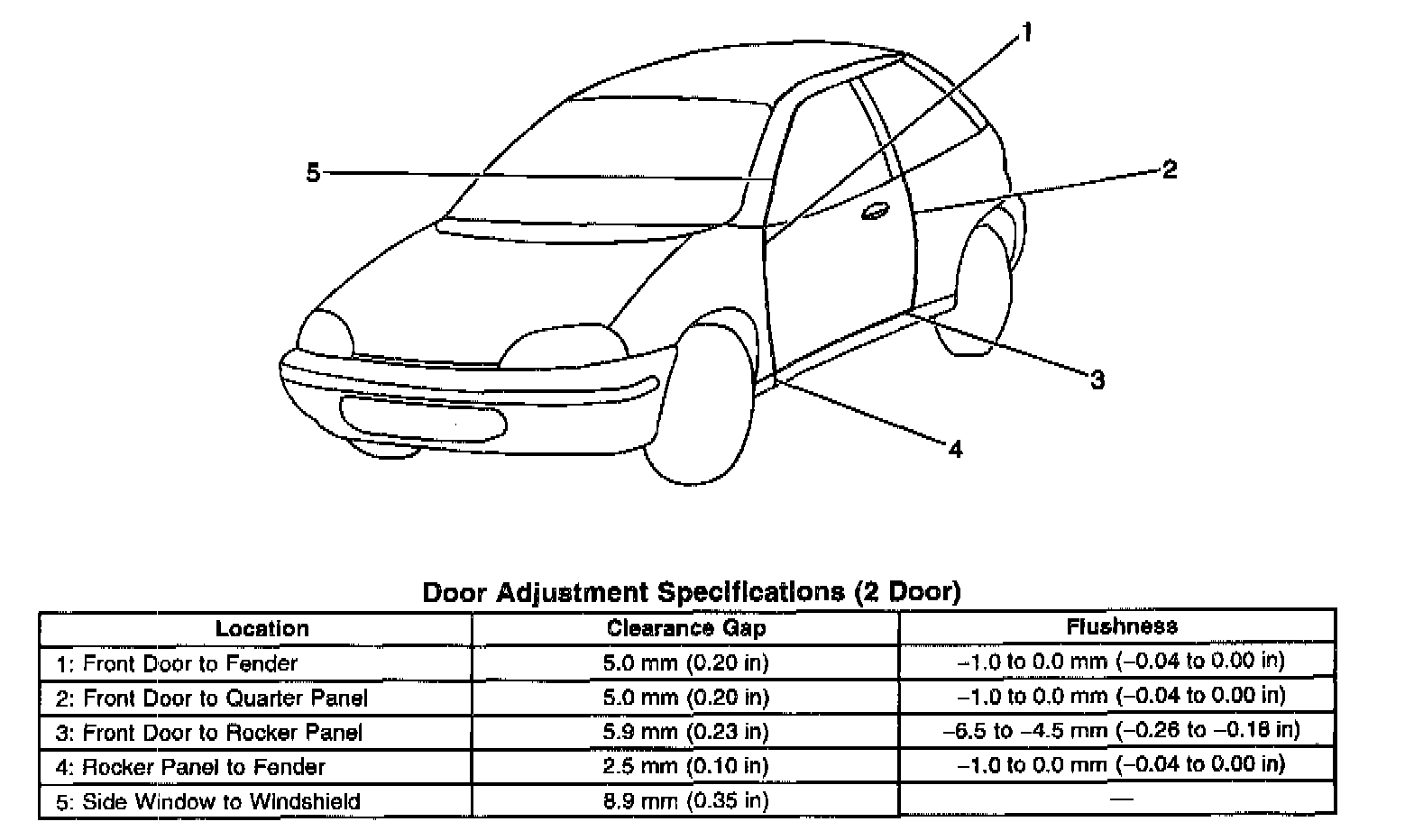

Door Adjustment Specifications (2-Door)
Door Adjustment Specifications (2-Door)
Door Adjustment Specifications (2-Door):
The specifications are to be used to ensure the proper clearances and flushness of the doors after body repair procedures are complete.
