Front Door Hinge: Service and Repair

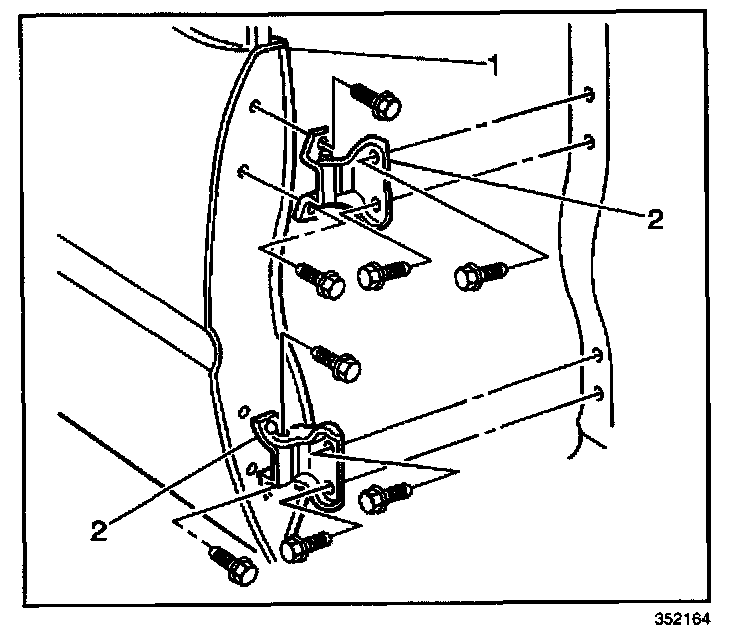

REMOVAL PROCEDURE




1. Remove the fender.

IMPORTANT: Remove only one hinge at a time in order to keep the door properly aligned.

2. Remove the 2 door to hinge bolts.
3. Remove the 2 hinge to door jamb bolts.
4. Remove the upper or lower hinge (2) from the vehicle.

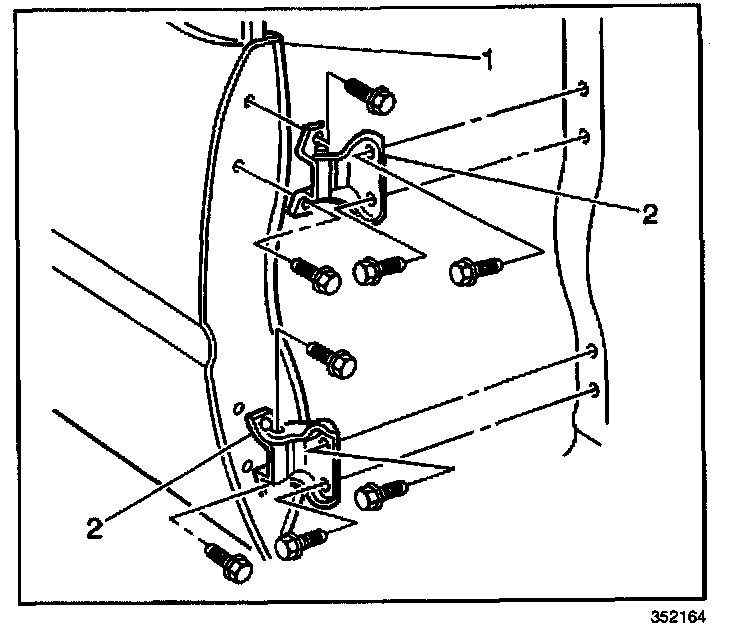

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the hinge (2) to the door jamb. Secure the hinge with 2 bolts.

Tighten
Tighten the hinge-to-door-jamb bolts to 34 N.m (25 lb ft).

2. Install the 2 door to hinge bolts.

Tighten
Tighten the door-to-hinge bolts to 34 N.m (25 lb ft).

3. Repeat the removal and installation steps for the opposite hinge, if necessary.
4. Install the fender.
