C1286

CIRCUIT DESCRIPTION
Diagnostic Trouble Code (DTC) C1286 is provided as an "information only" test and reflects the status of the command issued by the Electronic Brake Control Module (EBCM) to illuminate the red BRAKE warning indicator.

CONDITIONS FOR SETTING THE DTC
When another diagnostic Diagnostic Trouble Code (DTC) issues a command to illuminate the red BRAKE warning indicator, DTC C1286 will be stored in memory as a history DTC at the conclusion of the ignition cycle.

ACTION TAKEN WHEN THE DTC SETS
^ A malfunction Diagnostic Trouble Code (DTC) stores.
^ The ABS disables.
^ The ABS warning indicator turns ON.
^ The red Brake warning indicator turns ON.

CONDITIONS FOR CLEARING THE DTC
^ The condition responsible for setting the Diagnostic Trouble Code (DTC) no longer exists and the Scan Tool Clear DTCs function is used.
^ 100 drive cycles pass with no DTCs detected. A drive cycle consists of starting the vehicle, driving the vehicle over 16 km/h (10 mph), stopping and then turning the ignition OFF.

DIAGNOSTIC AIDS
The following ABS mechanical Diagnostic Trouble Codes (DTCs) command the red BRAKE warning indicator to illuminate. The DTCs will also cause the EBCM to store DTC C1286 during shutdown:
^ C1242
^ C1246
^ C1251

If the motors are not in their home position, the following electrical DTCs will also command the red BRAKE warning indicator ON:
^ C1214
^ C1216
^ C1218
^ C1236
^ C1255
^ C1264
^ C1265
^ C1266
^ C1282

If any of the electrical DTCs are indicated along with DTC C1286, correct the electrical DTCs prior to addressing a DTC C1286 malfunction.

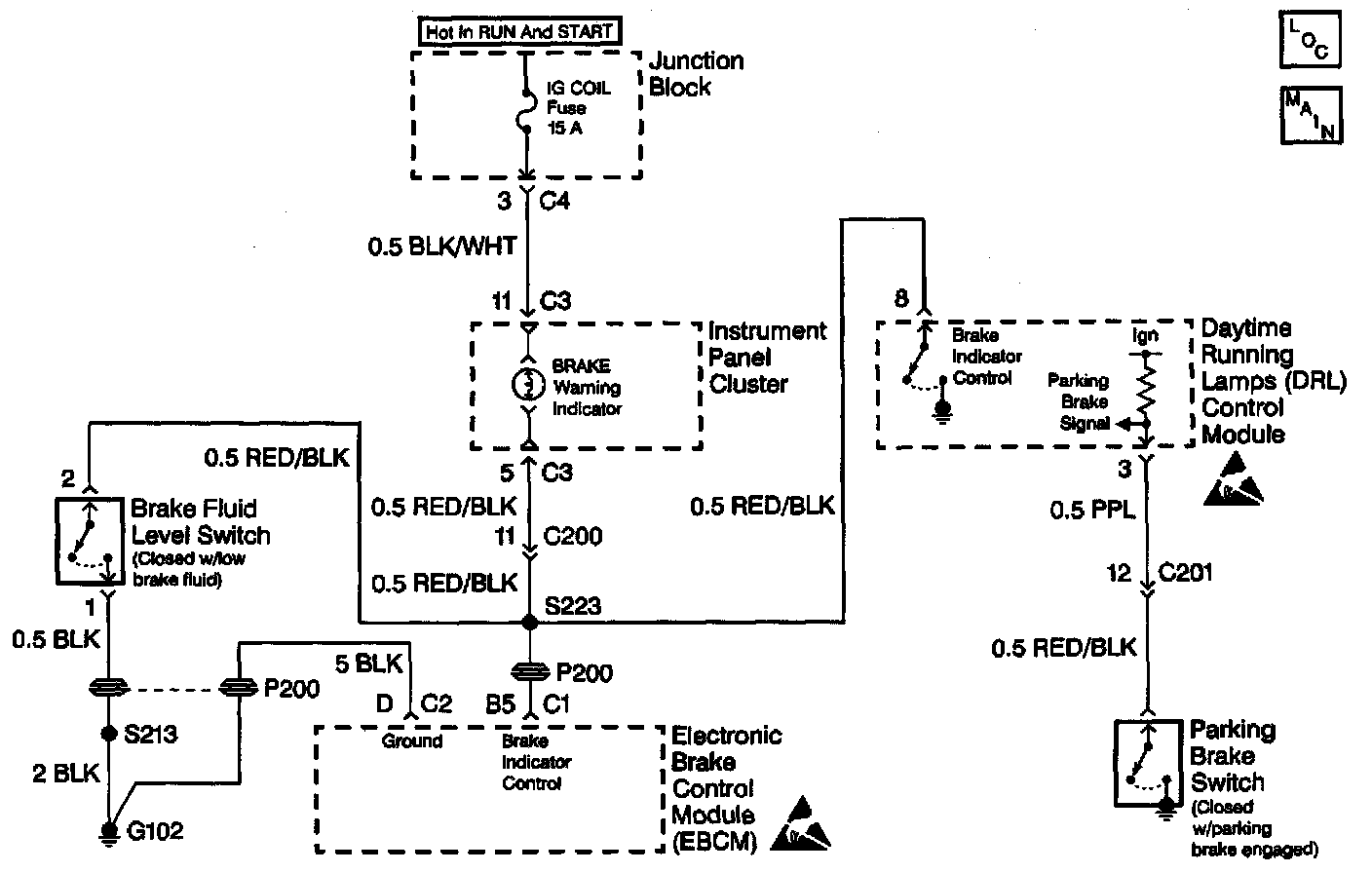

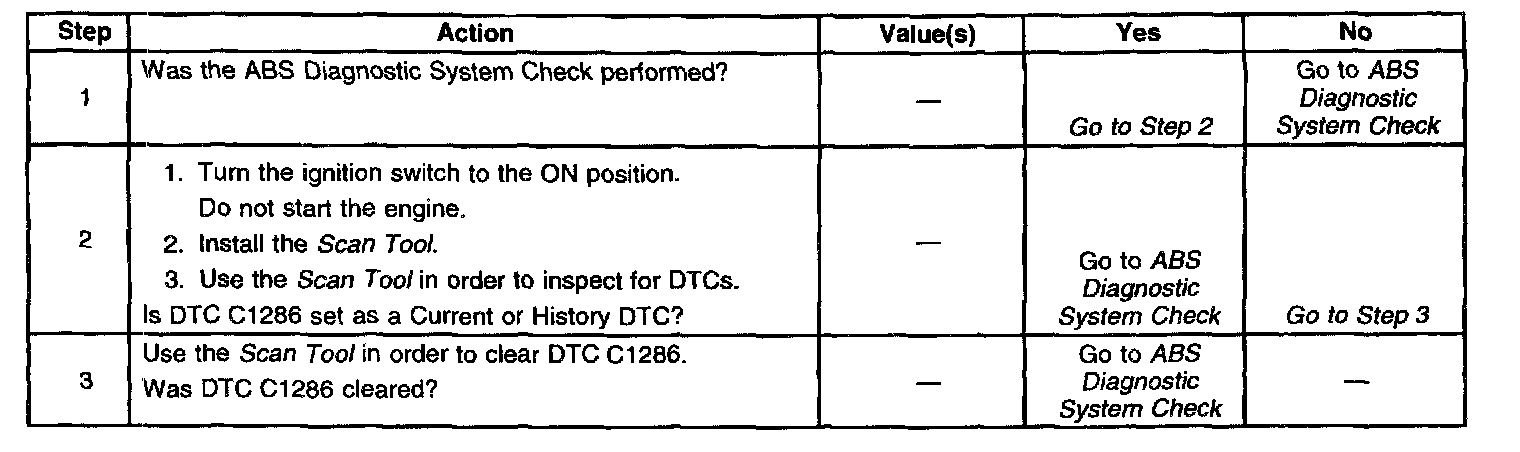

DTC C1286 EBCM TURNED ON BRAKE WARNING INDICATOR
