Home
>>
Pontiac
>>
1999
>>
Firebird V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Body
Body

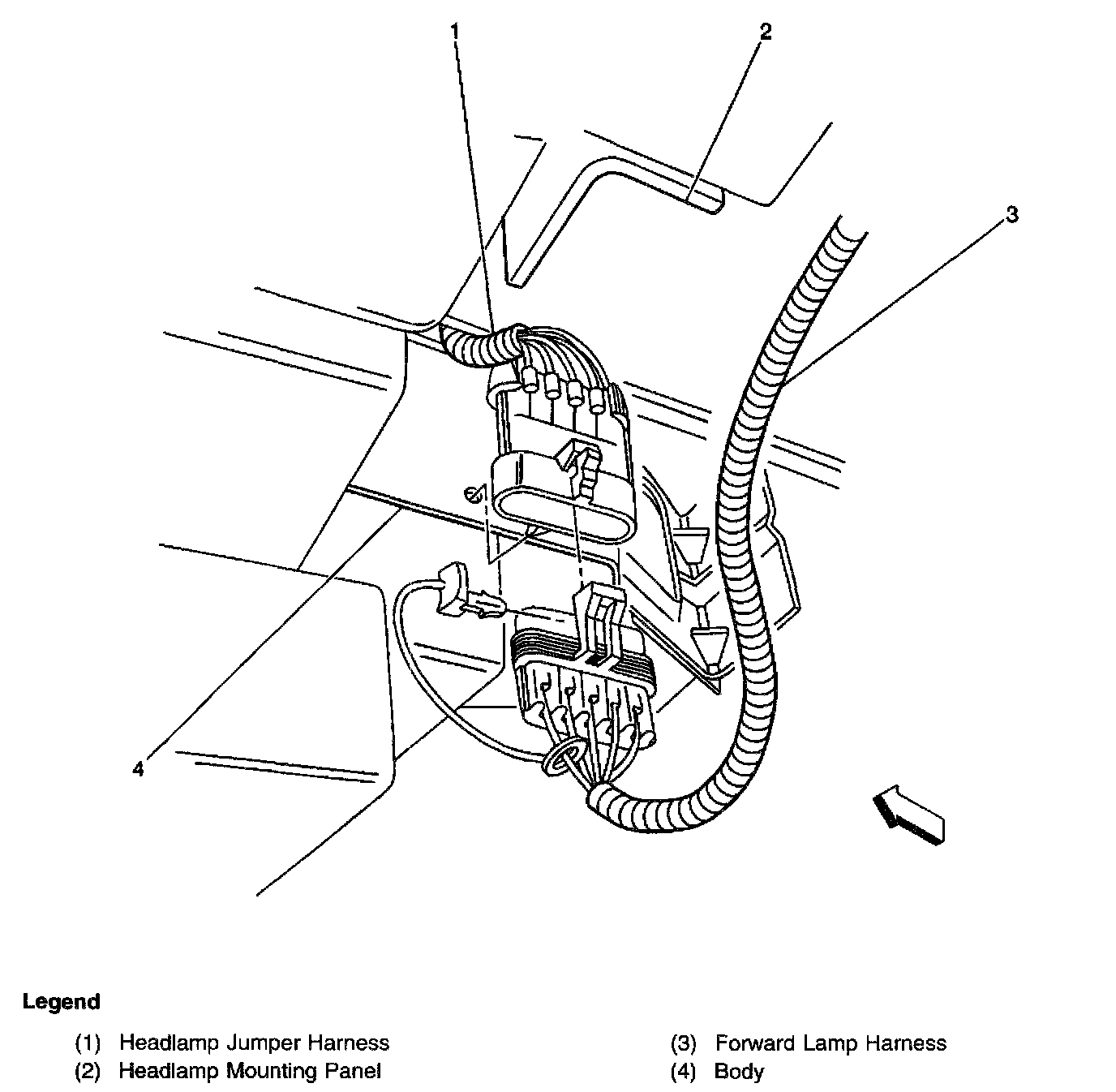

Right Front Engine Compartment (Left Side Similar):
