Home >> Pontiac >> 1998 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Locations >> Window Switch Connectors, Front

Window Switch Connectors, Front

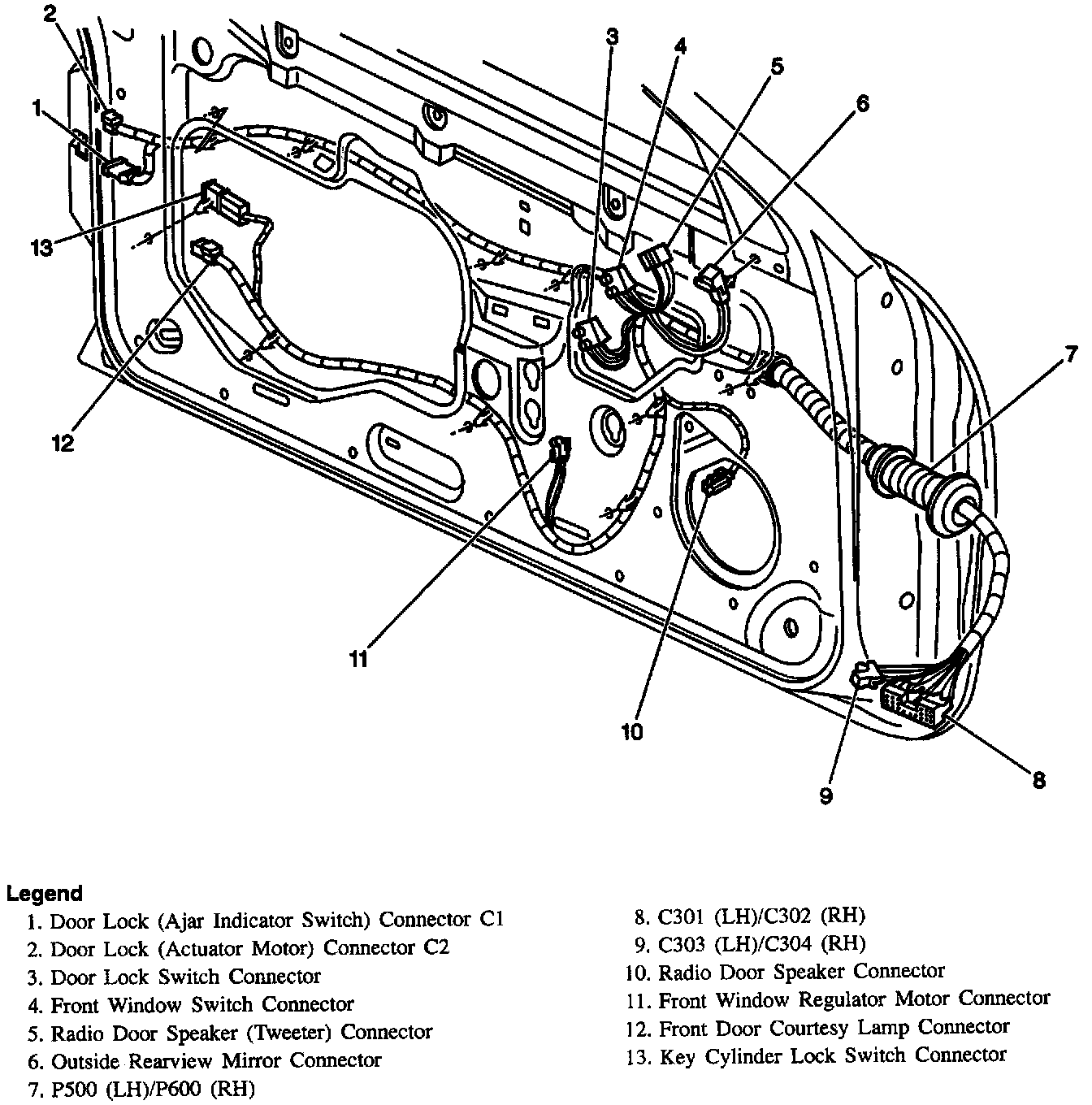

LF Door (Coupe) (RH Similar):

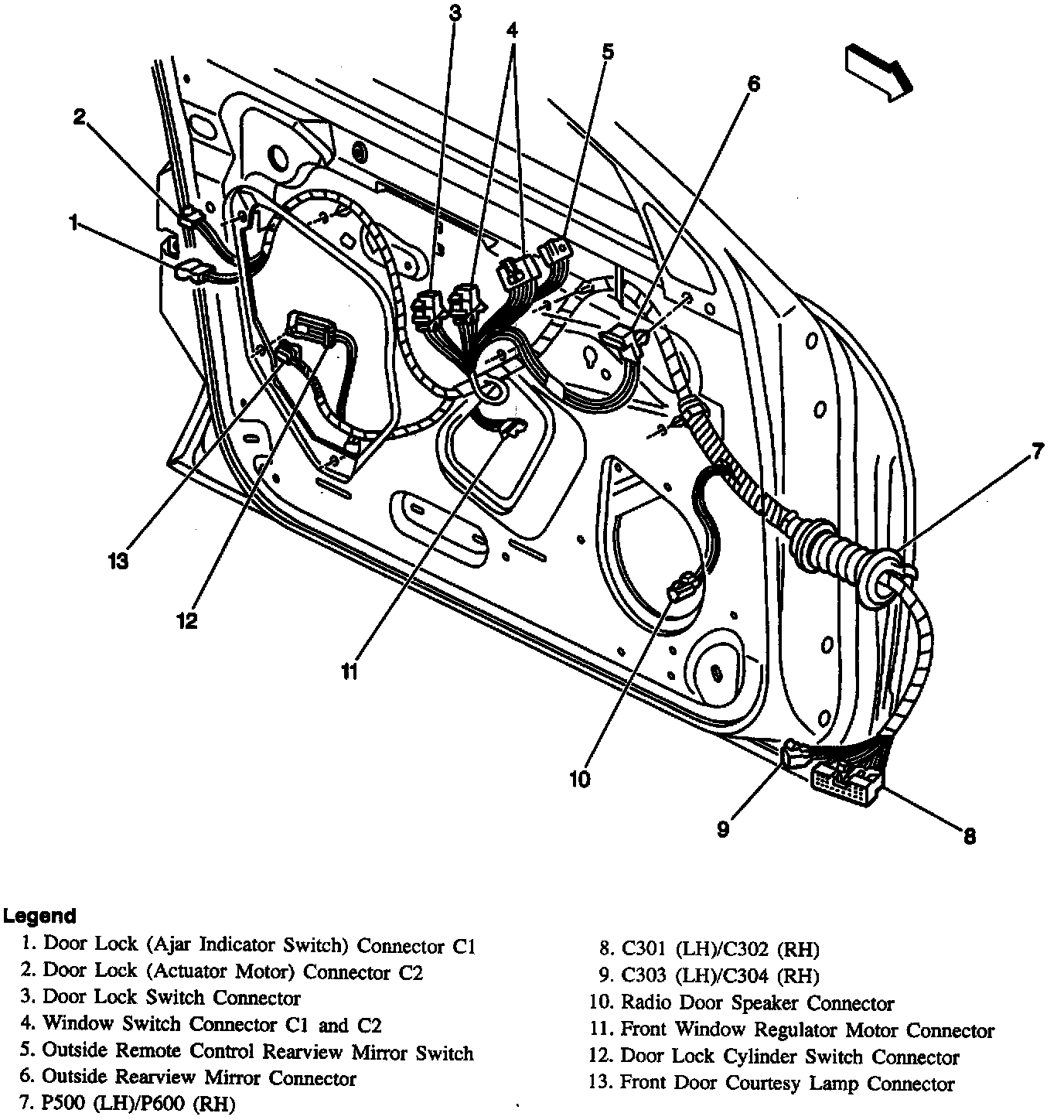

LF Door (Sedan) (RH Similar):

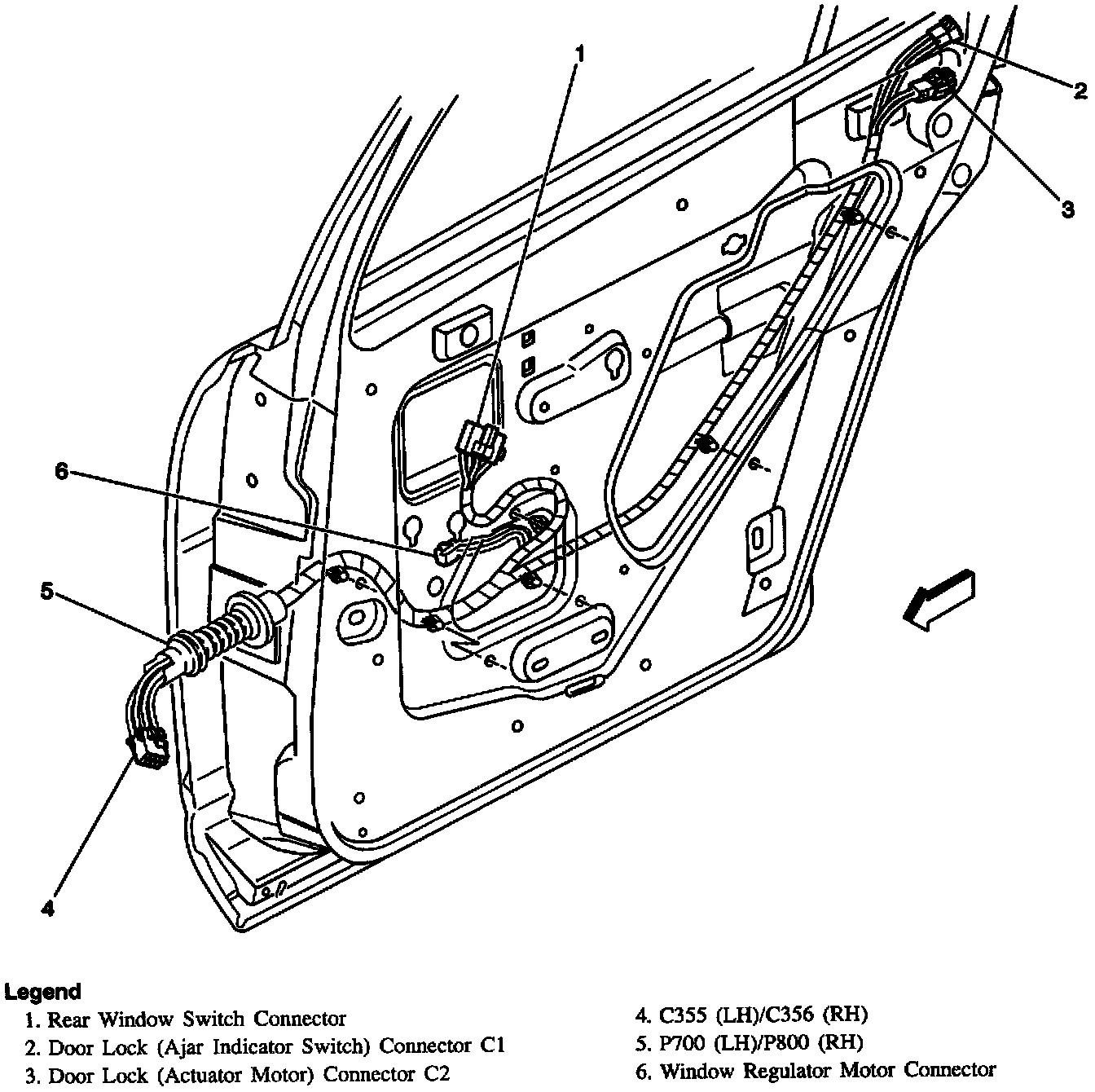

RR Door (LH Similar):
