Home >> Pontiac >> 1998 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> LF

LF

Window Switch, LF (Coupe):



Window Switch, LF (Sedan): C1:

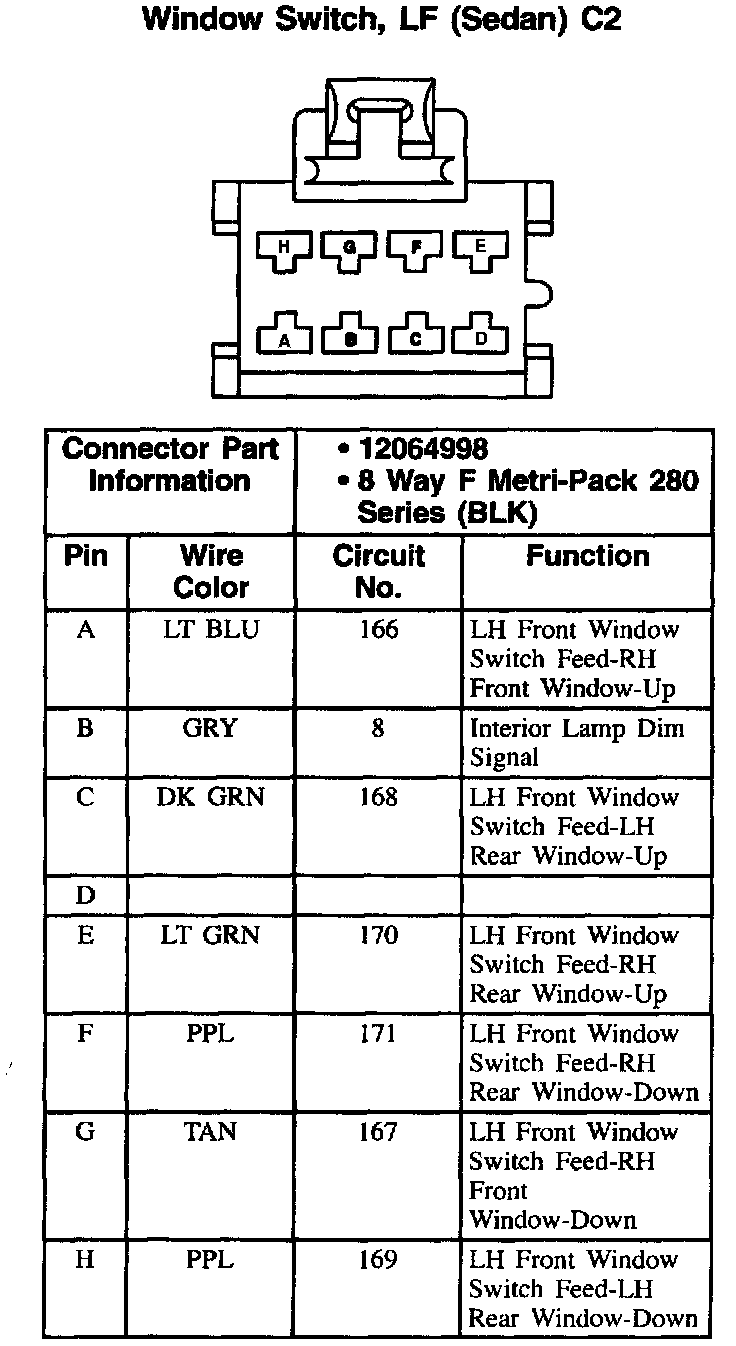

Window Switch, LF (Sedan): C2:
