Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

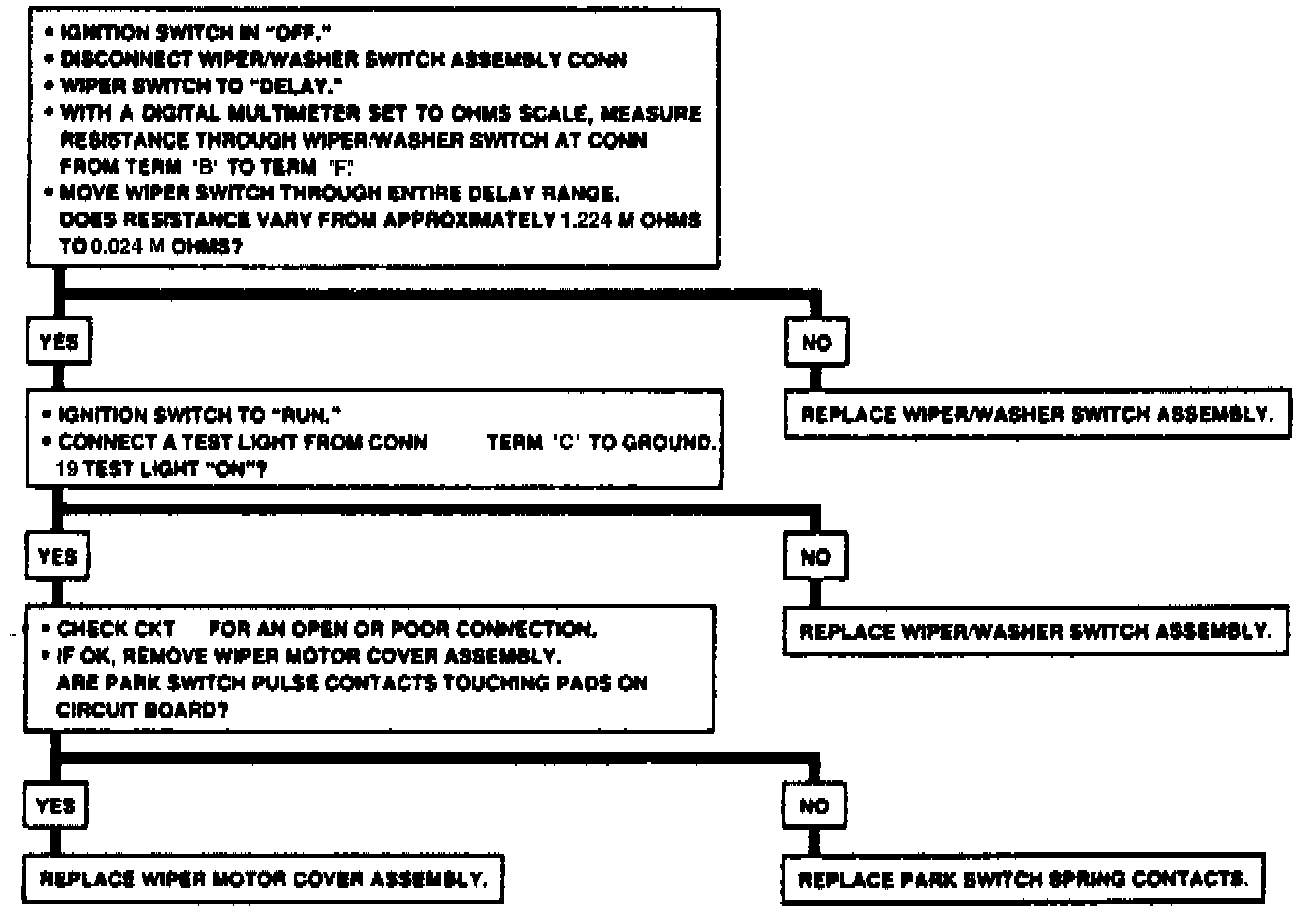

Fig. 72 Test 7: Pulse Delay Operates Incorrectly Or Not At All.:
