Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Wiper Operates at Low Speed Only

Wiper Operates at Low Speed Only

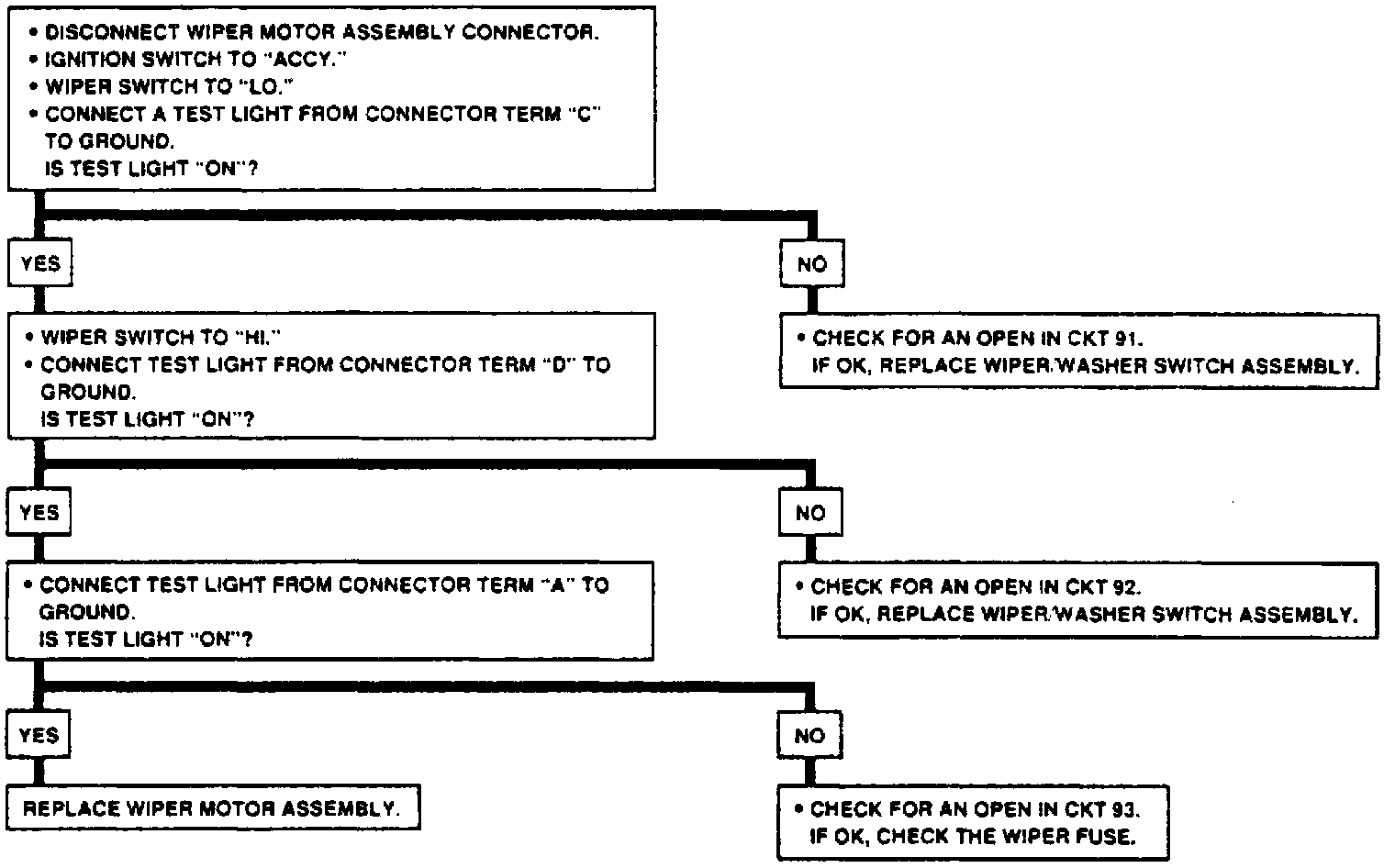

Fig. 5 Chart 3: Wipers Run At Low Speed Only:
