Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Diagnostic Tests - Power Windows >> Test B: Console Window Switch Test >> Coupe

Coupe

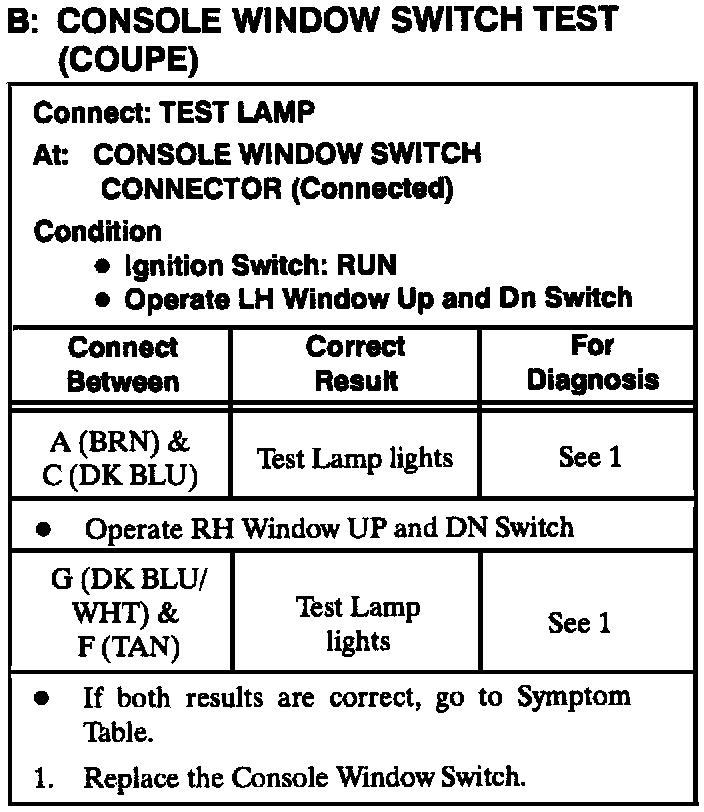

Test B: Console Window Switch Test (Coupe):
