Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Tests >> Test A: Starter Solenoid Does Not Click & ENG Does Not Crank >> Table 4 Automatic Transaxle

Table 4 Automatic Transaxle

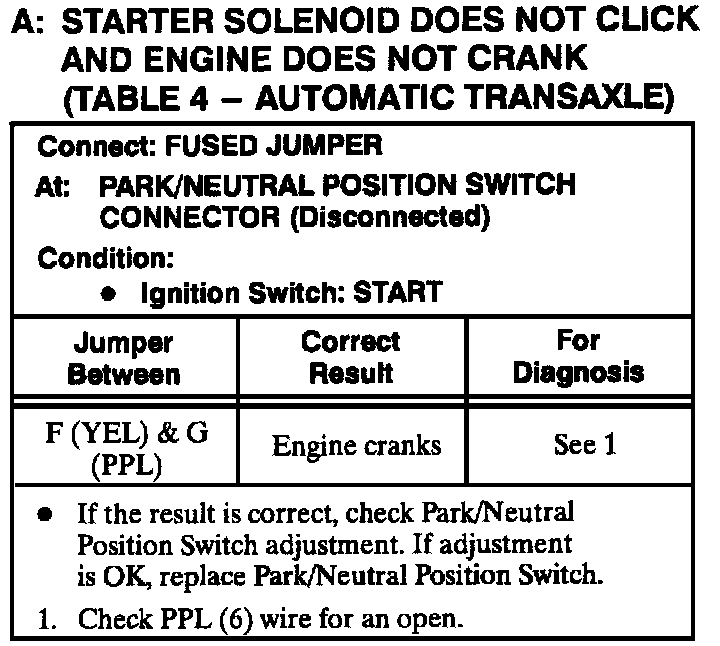

Test A: Starter Solenoid Does Not Click And Engine Does Not Crank (Table 4- Automatic Transaxle):
