Starter Motor Diagnosis - Delco-Remy Starters

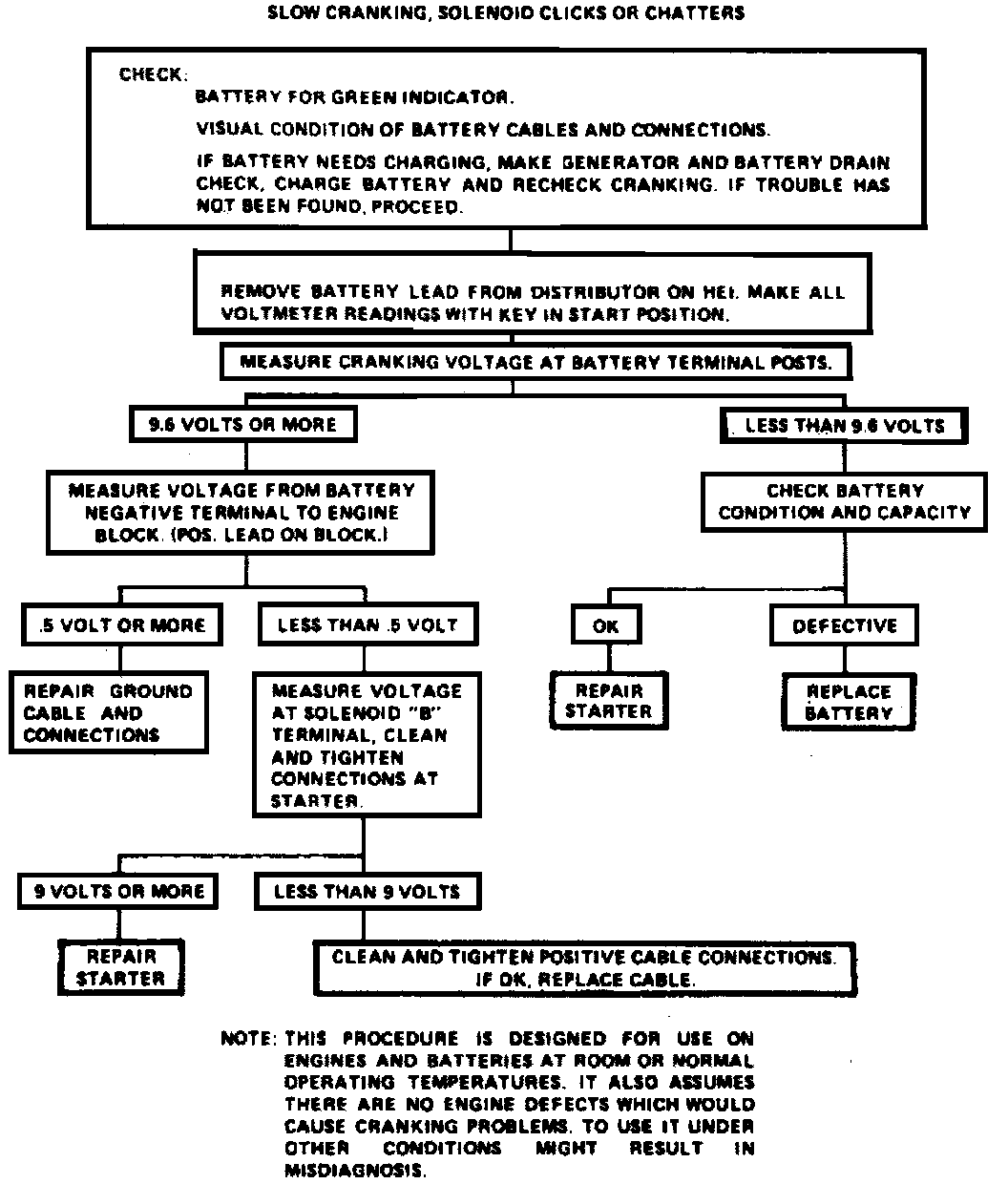

Fig. 3 AC-Delco Starter Motor Diagnosis (Part 1 Of 2):

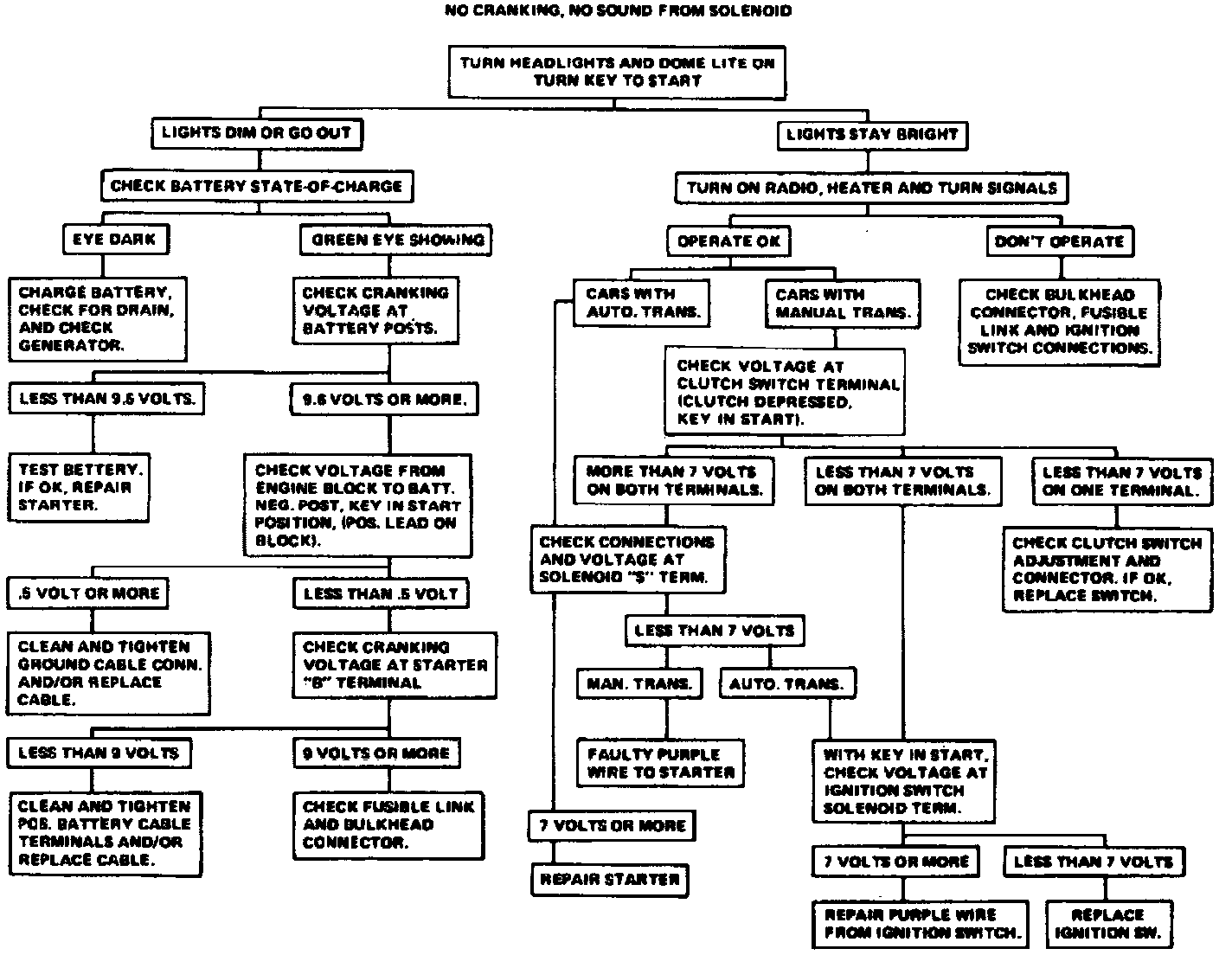

Fig. 3 AC-Delco Starter Motor Diagnosis (Part 2 Of 2):
