Fastener Tightening Specifications - Sequence

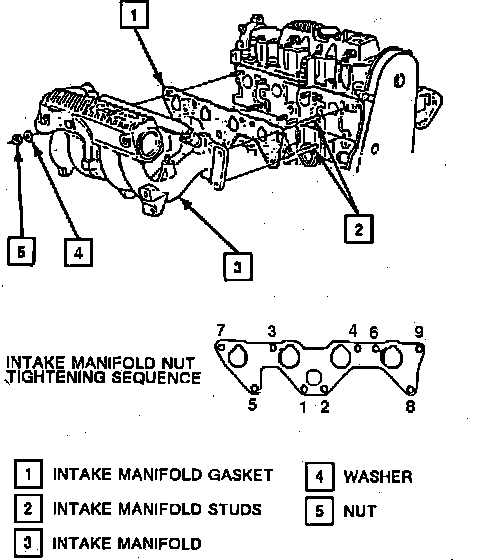

Fig. 3 Intake Manifold Tightening Sequence:

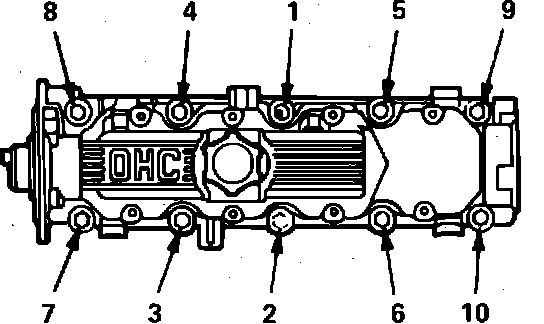

Cylinder Head & Camshaft Carrier Bolt Tightening Sequence:
