Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Locations >> Connector Locations

Connector Locations

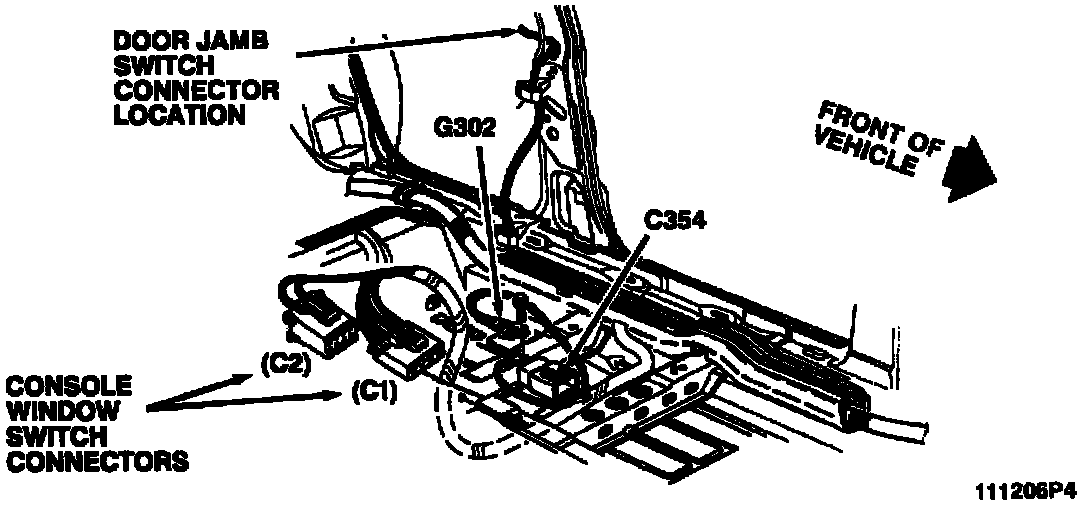

LH Side Of Passenger Compartment (Sedan):

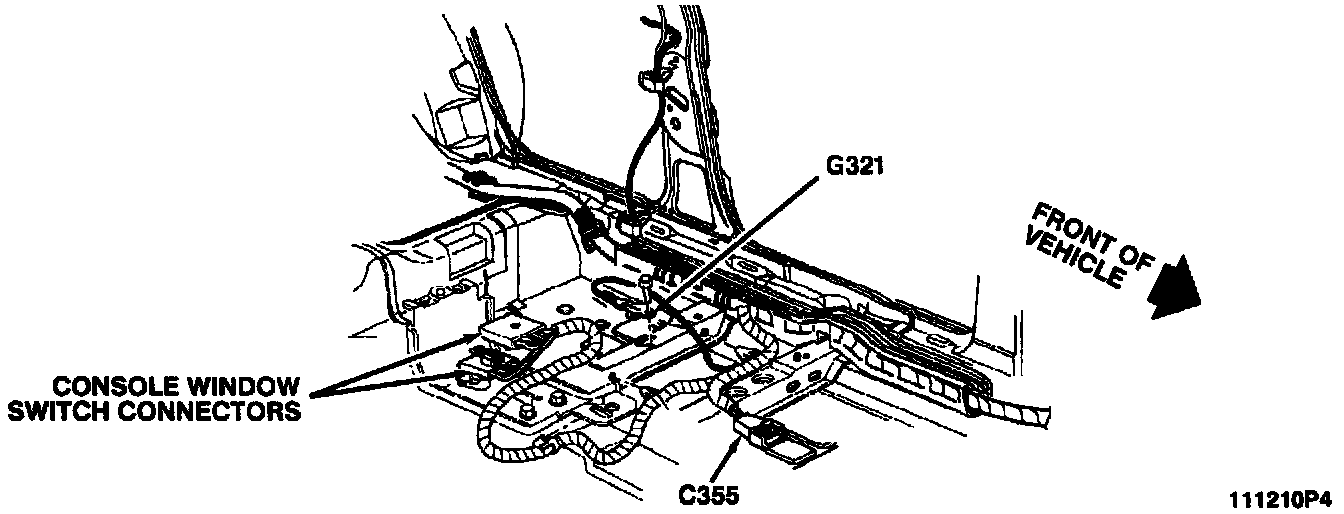

Center Of Console (Sedan):
