Heated Glass Element Switch: Diagrams

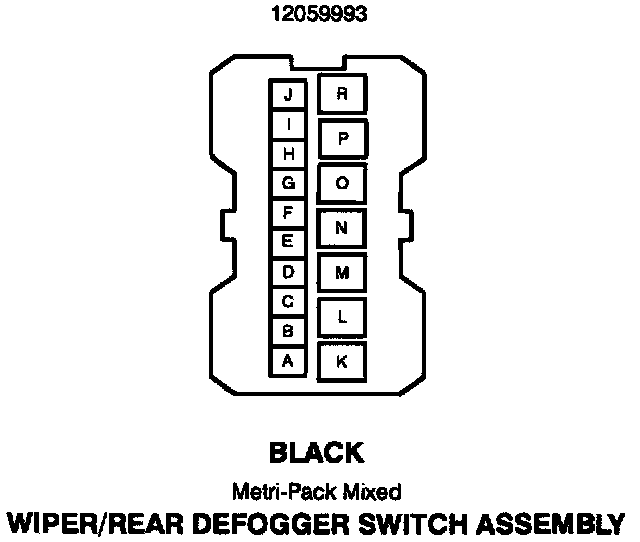

Wiper/Rear Defogger Switch Assembly:

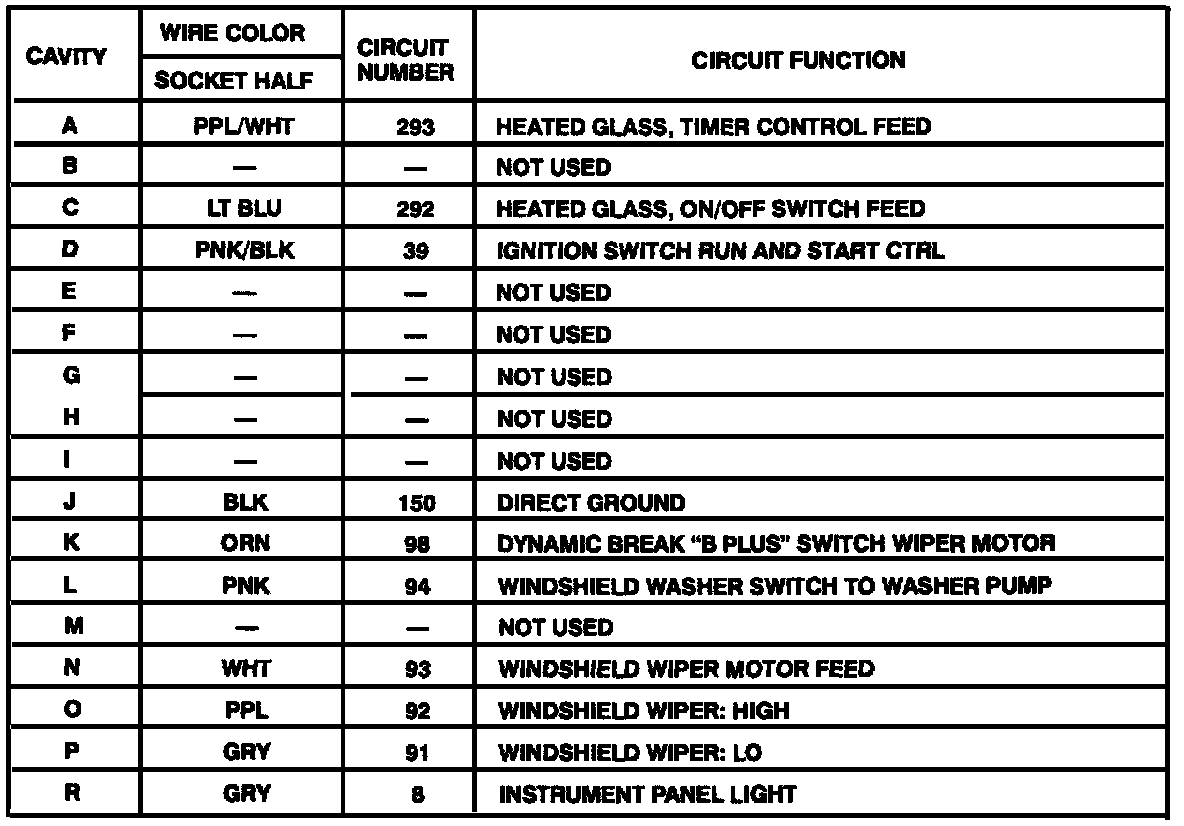

Wiper/Rear Defogger Switch Assembly:
