FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Pontiac
>>
1994
>>
J2000/Sunbird L4-121 2.0L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Charts
Diagnostic Charts

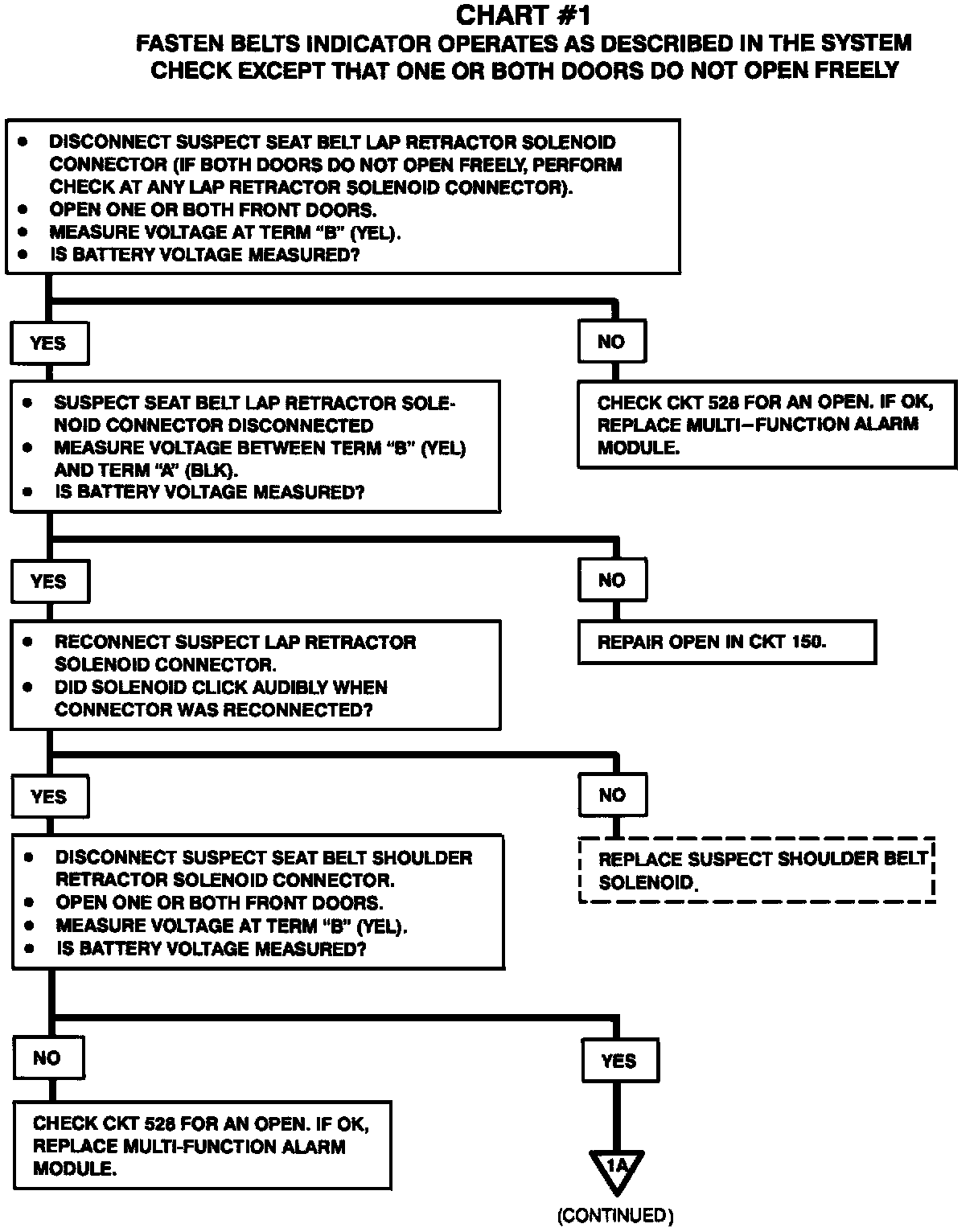

Chart #1 One Or Both Doors Do Not Open Freely (Part 1 Of 2):
Chart #1 One Or Both Doors Do Not Open Freely (Part 2 Of 2):
