Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Data Sensors & Vehicle Data Sensors

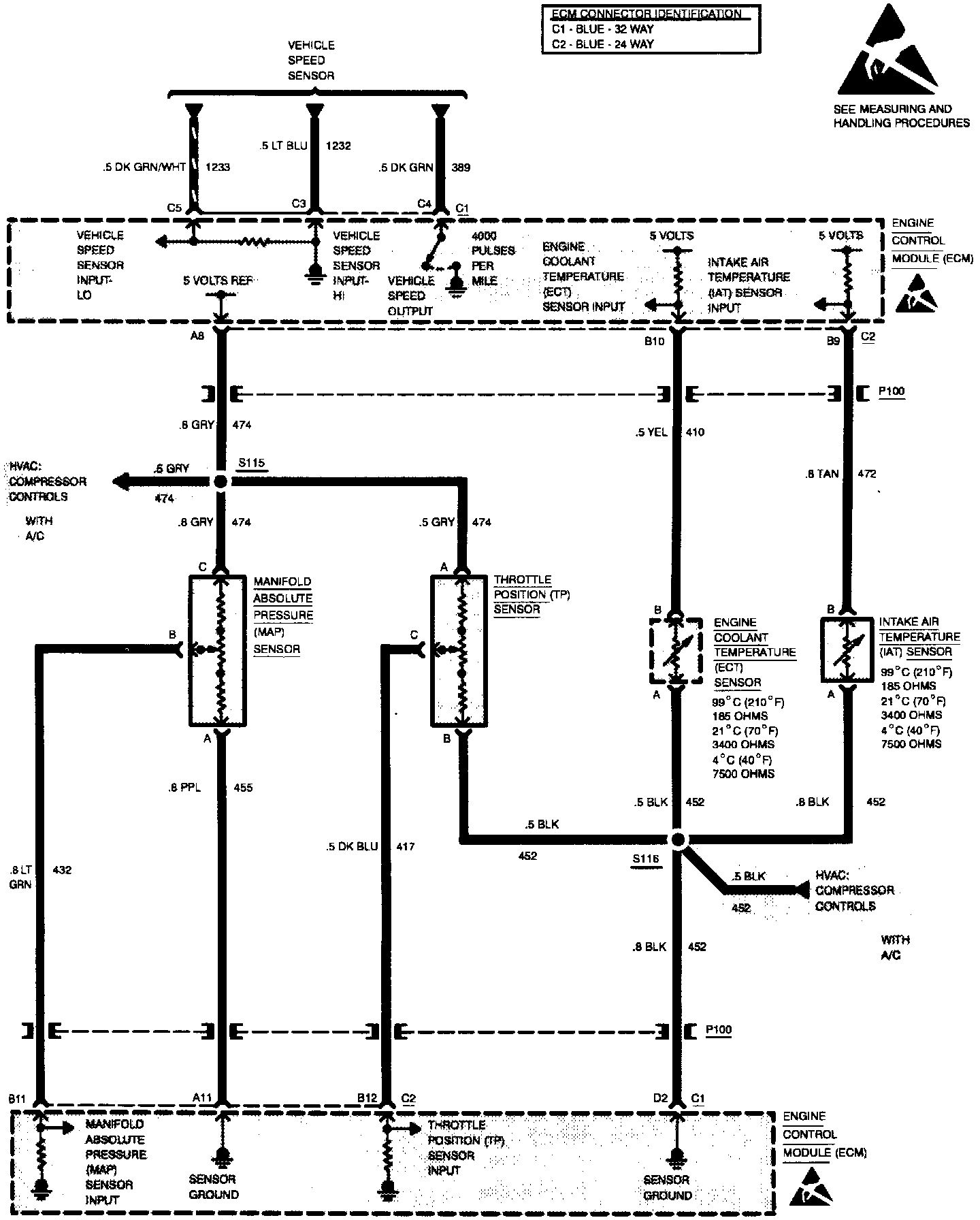

Engine Data Sensors & Vehicle Data Sensors

Engine Data Sensor:
