Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Diagnostic Tests - Interior Lights Dimming >> Test A Headlight Switch Assembly Test

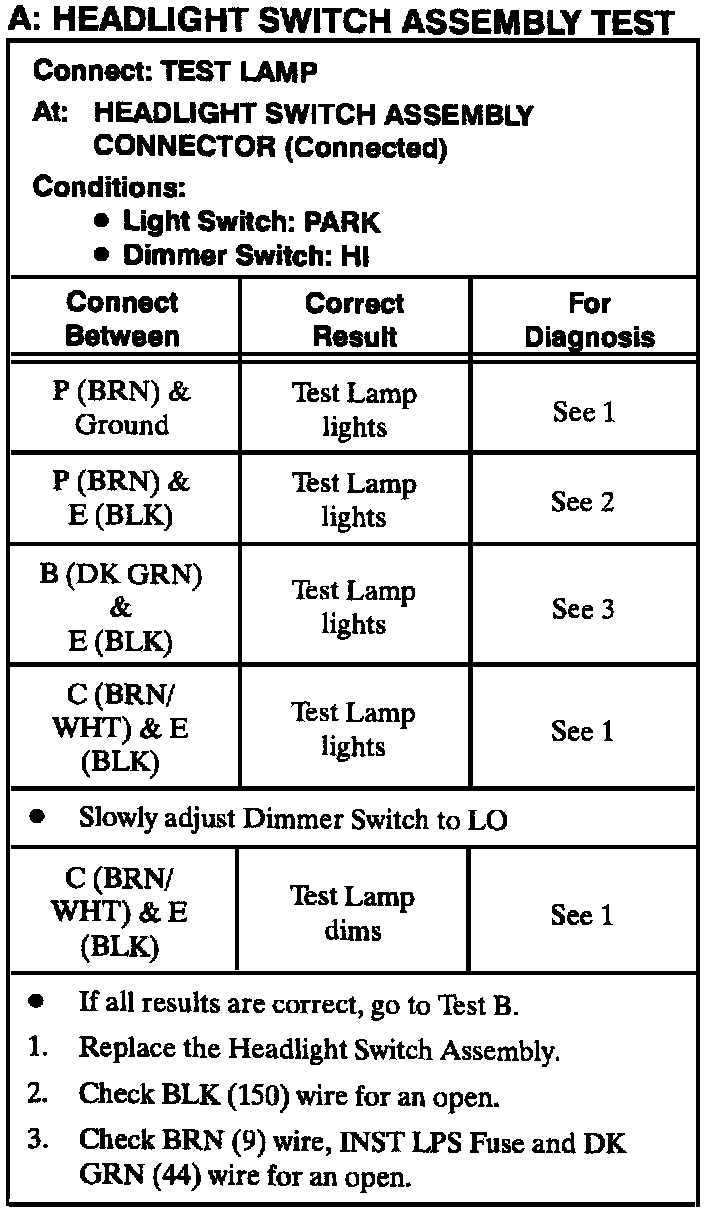

Test A Headlight Switch Assembly Test

Test A: Headlight Switch Assembly Test:
