Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Component Tests and General Diagnostics >> Circuit Diagnosis >> Test A: Turn Lamps Test

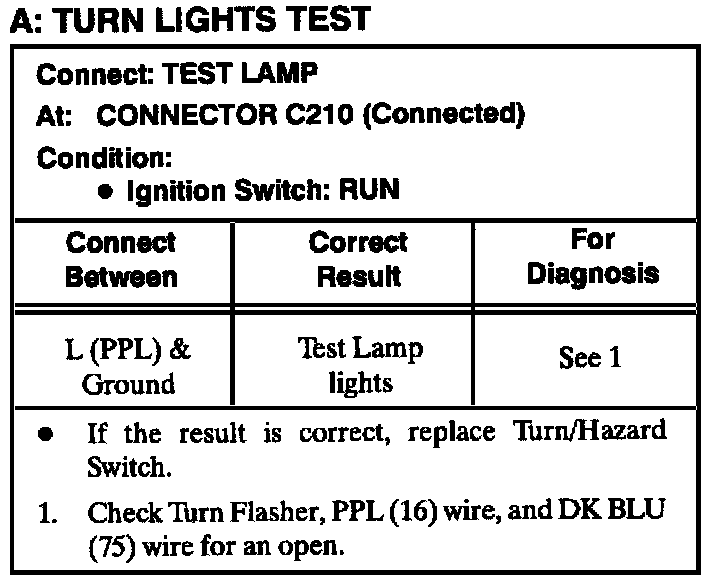

Test A: Turn Lamps Test

Test A: Turn Lights Test:
