Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> With Daytime Running Lamps >> Diagnostic Charts >> Chart #3 Hi and LO Beam Headlights Are Inoperative

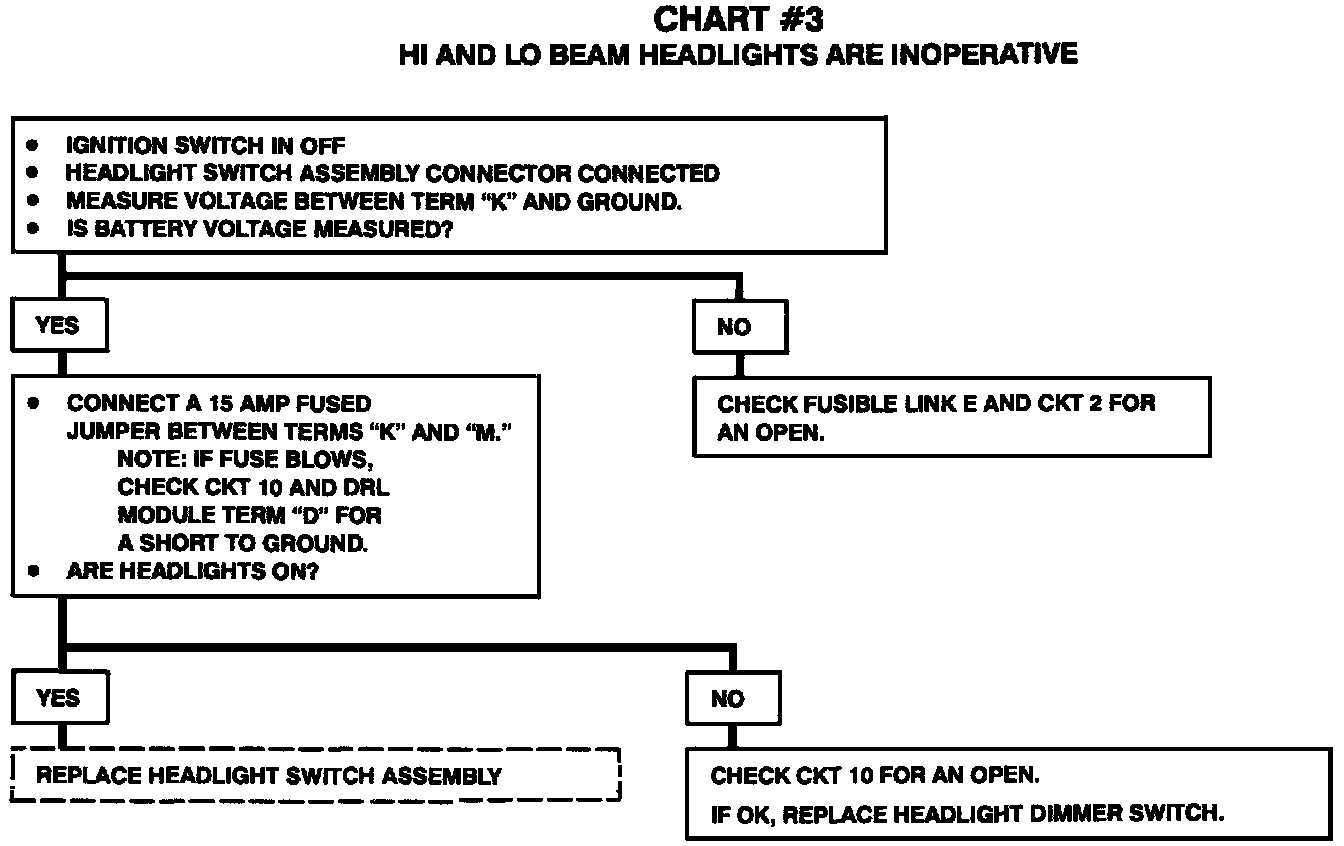

Chart #3 Hi and LO Beam Headlights Are Inoperative

Chart #3 HI And LO Beam Headlights Are Inoperative:
