Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Diagnostic Charts >> Backup Lamps Inoperative

Backup Lamps Inoperative

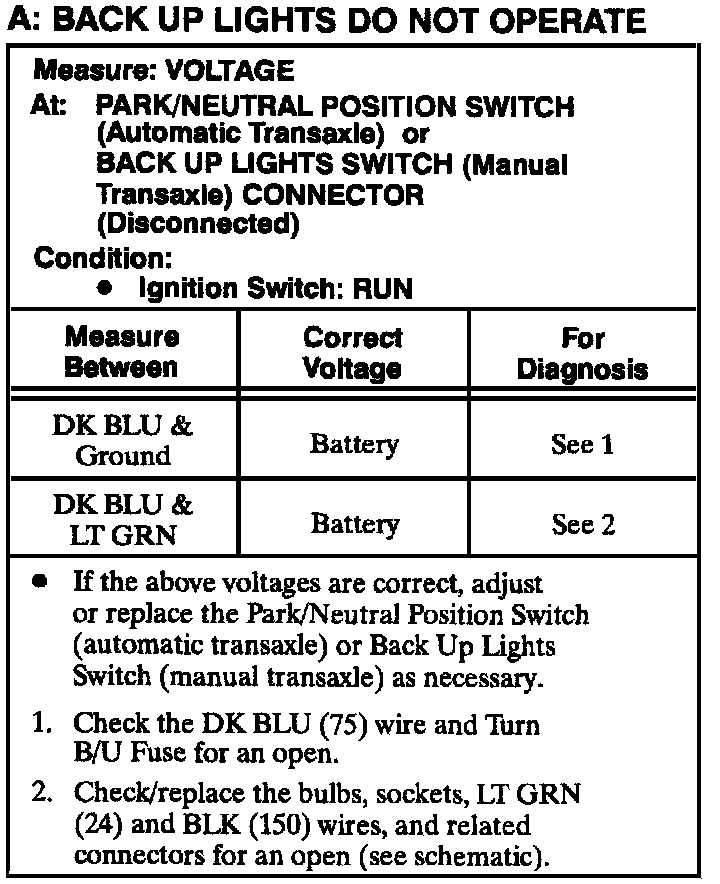

Test A: Back Up Lights Do Not Operate:
