Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Diagnostic Charts >> Backup Lamps Always ON >> Automatic Transaxle

Automatic Transaxle

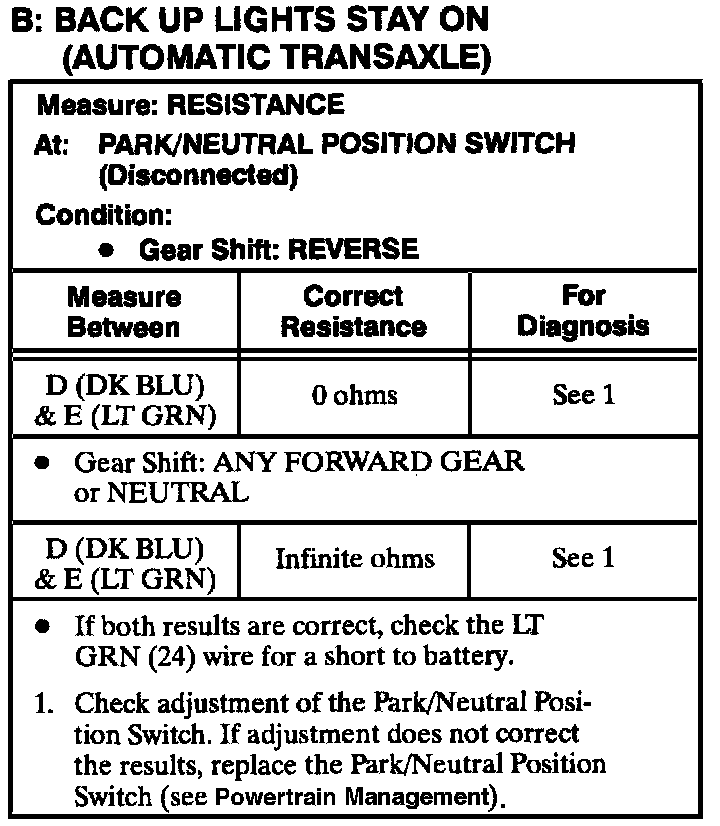

Test B: Back Up Lights Stay ON (Automatic Transaxle):
