Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Diagrams >> Electrical Diagrams >> Coupe and Convertible

Coupe and Convertible

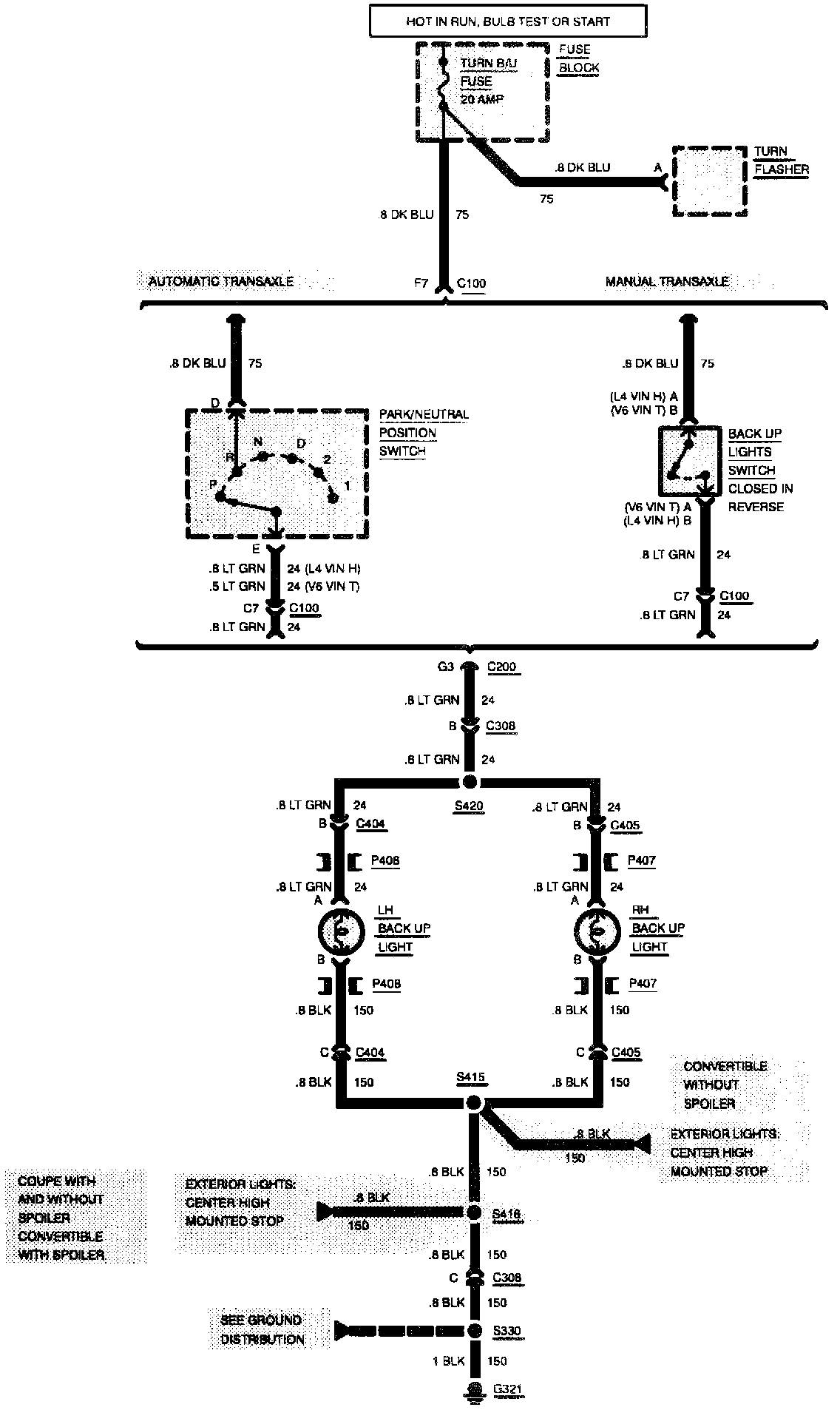

Backup Lights: Coupe And Convertible:
