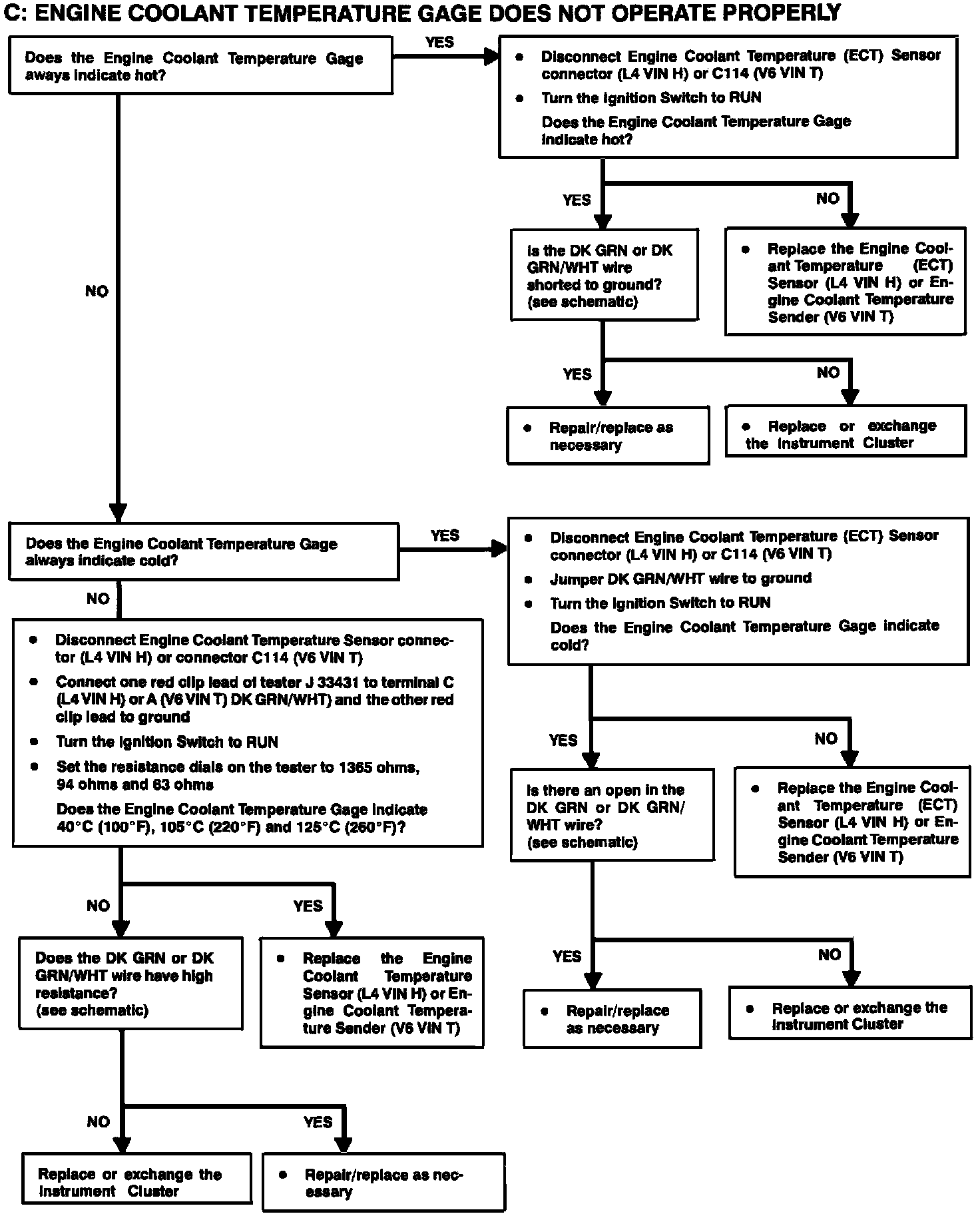

Test C: Coolant Temperature Gage Does Not Operate Properly
Test C: Coolant Temperature Gage Does Not Operate Properly
Test C: Engine Coolant Temperature Gage Does Not Operate Properly:
