System Check - Rear Defogger

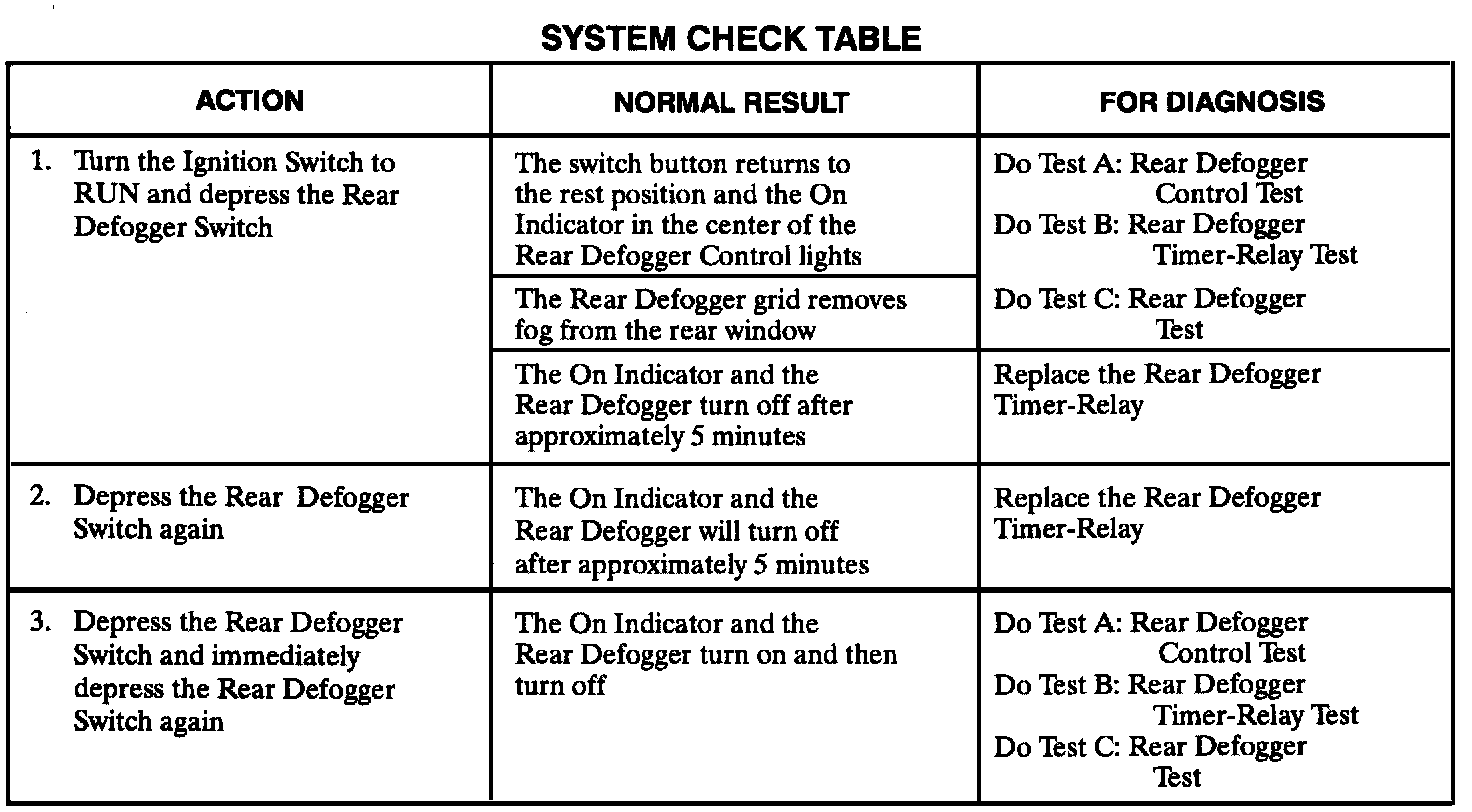

System Check Table:




- Use the System Check Table as a guide to normal operation. Refer to the diagnosis given if other results occur. The actions must be performed in the order shown.
- Tests follow in System Diagnosis. System Diagnosis - Rear Window Defogger & Heated Mirrors (SSE & SSEI Models)
- Refer for Wiper/Rear Defogger Switch Assembly access information.
- If all results are normal, the System is OK.
