Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Diagnostic Charts/Tests >> Rear Defogger >> Test B: Rear Defogger Timer-Relay Test

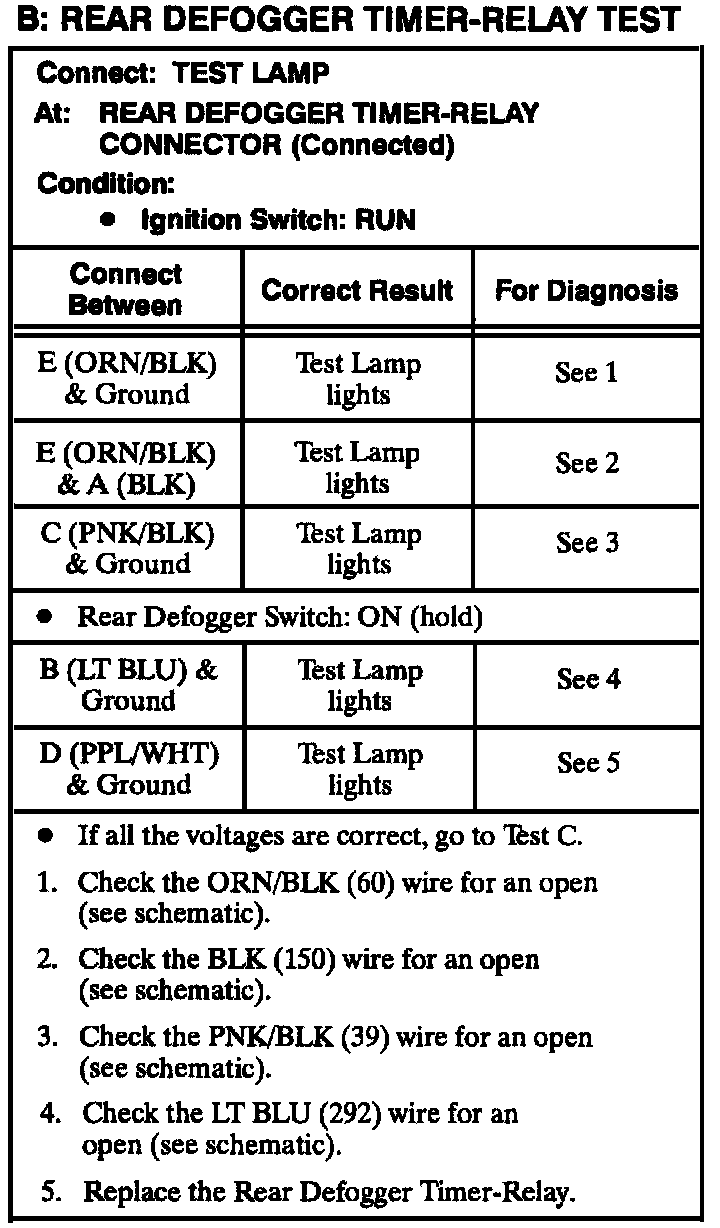

Test B: Rear Defogger Timer-Relay Test

Test B: Rear Defogger Timer-Relay Test:
