Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Diagnostic Charts/Tests >> Blower Controls >> Test D: Blower Switch Test >> Table 2

Table 2

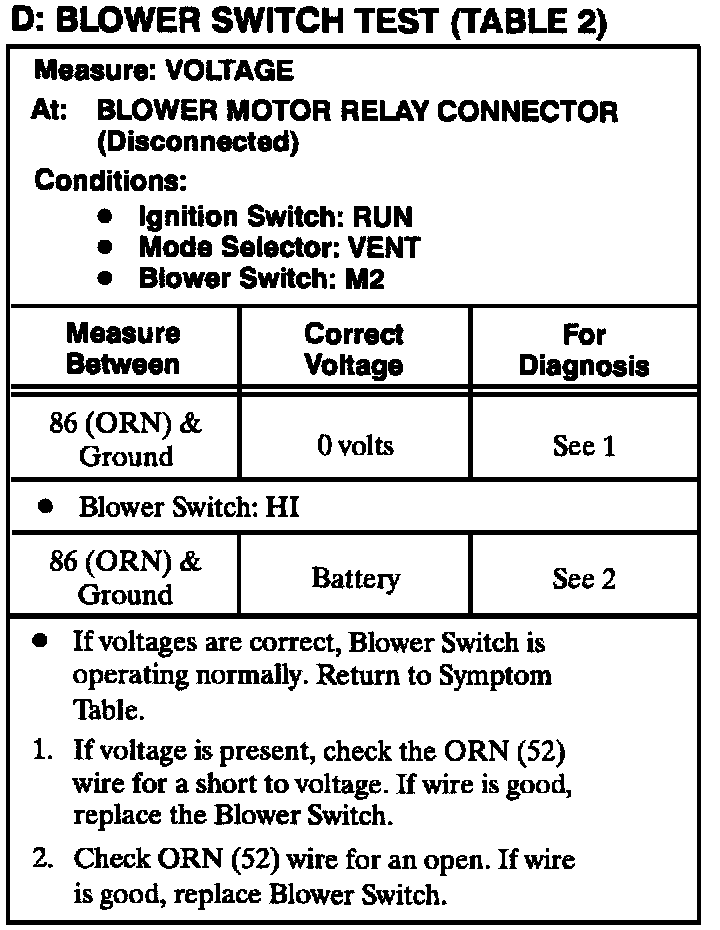

Test D: Blower Switch Test (Table 2):
