Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Diagnostic Charts/Tests >> Blower Controls >> Test B: Blower Resistor Test

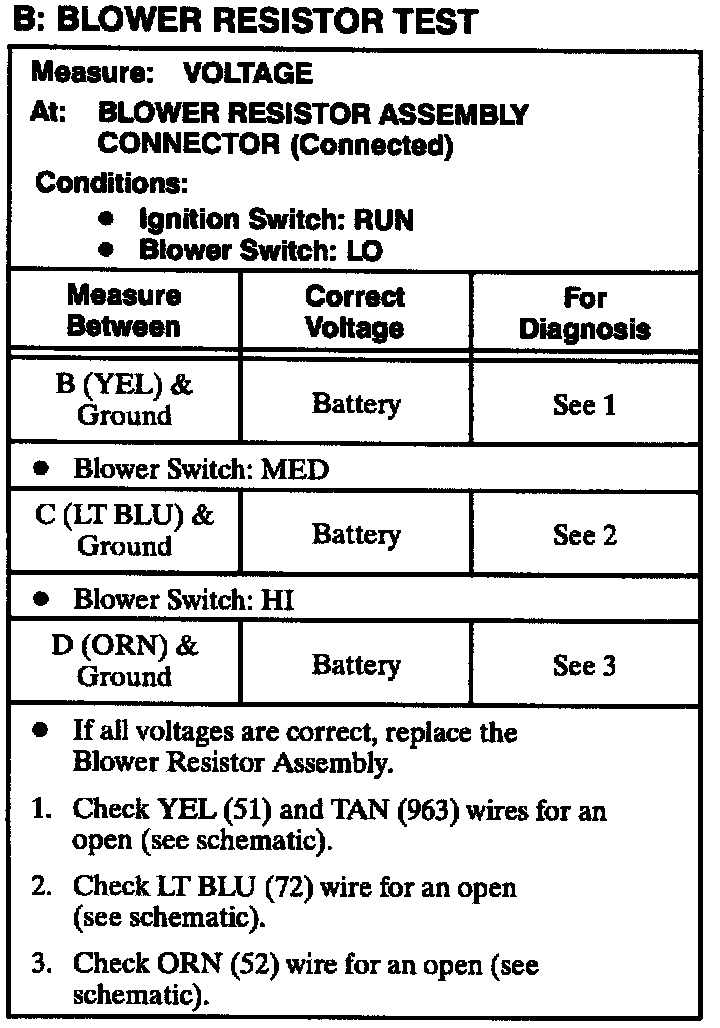

Test B: Blower Resistor Test

Test B: Blower Resistor Test:
