Expansion Block/Orifice Tube: Locations

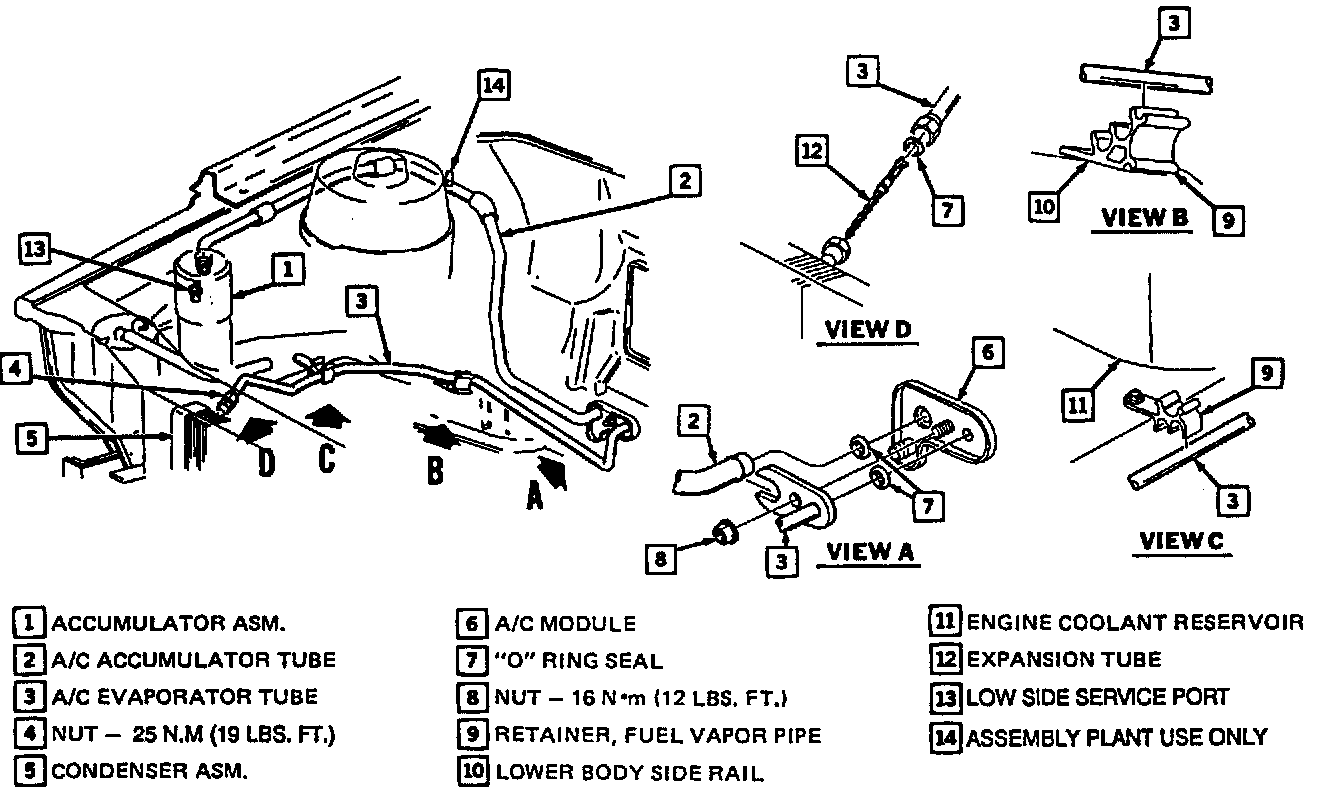

Evaporator Tube & Accumulator Tube:

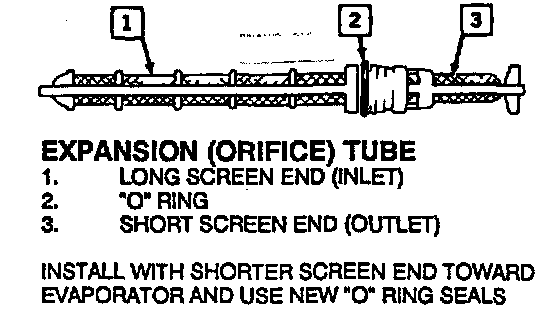

Expansion (Orifice) Tube:

The Expansion (Orifice) Tube is located at the condenser to evaporator tube connection in the evaporator tube.
