Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Exhaust System >> Testing and Inspection

Exhaust System: Testing and Inspection

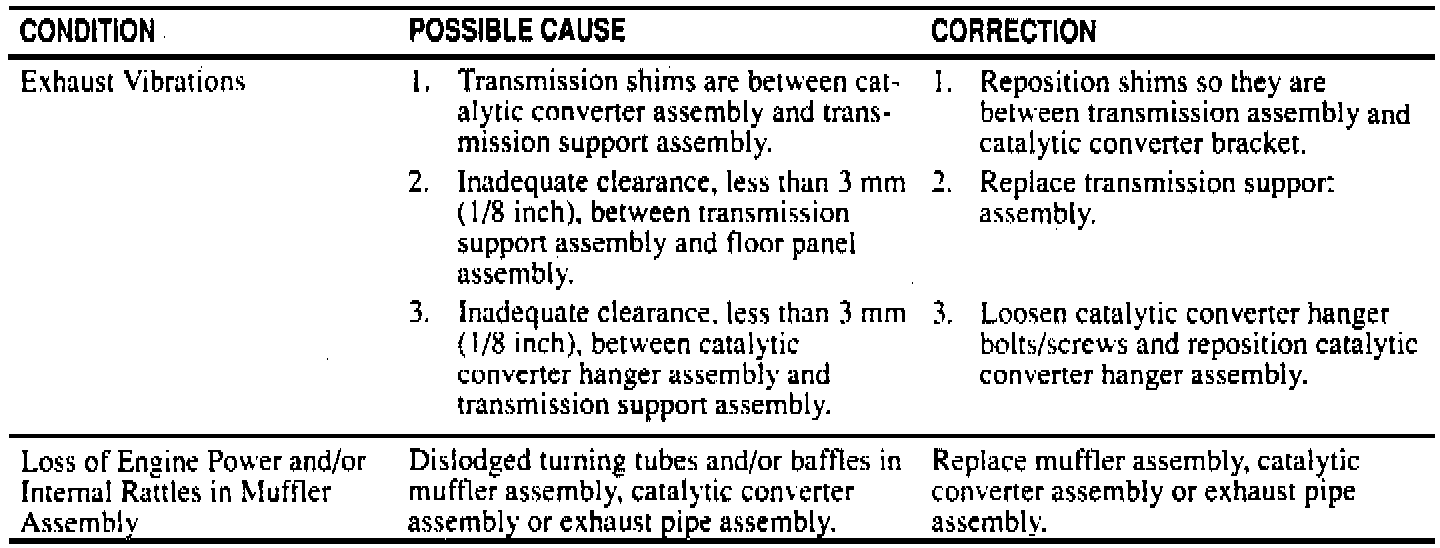

Fig. 4 Exhaust System (Part 1 Of 2).:

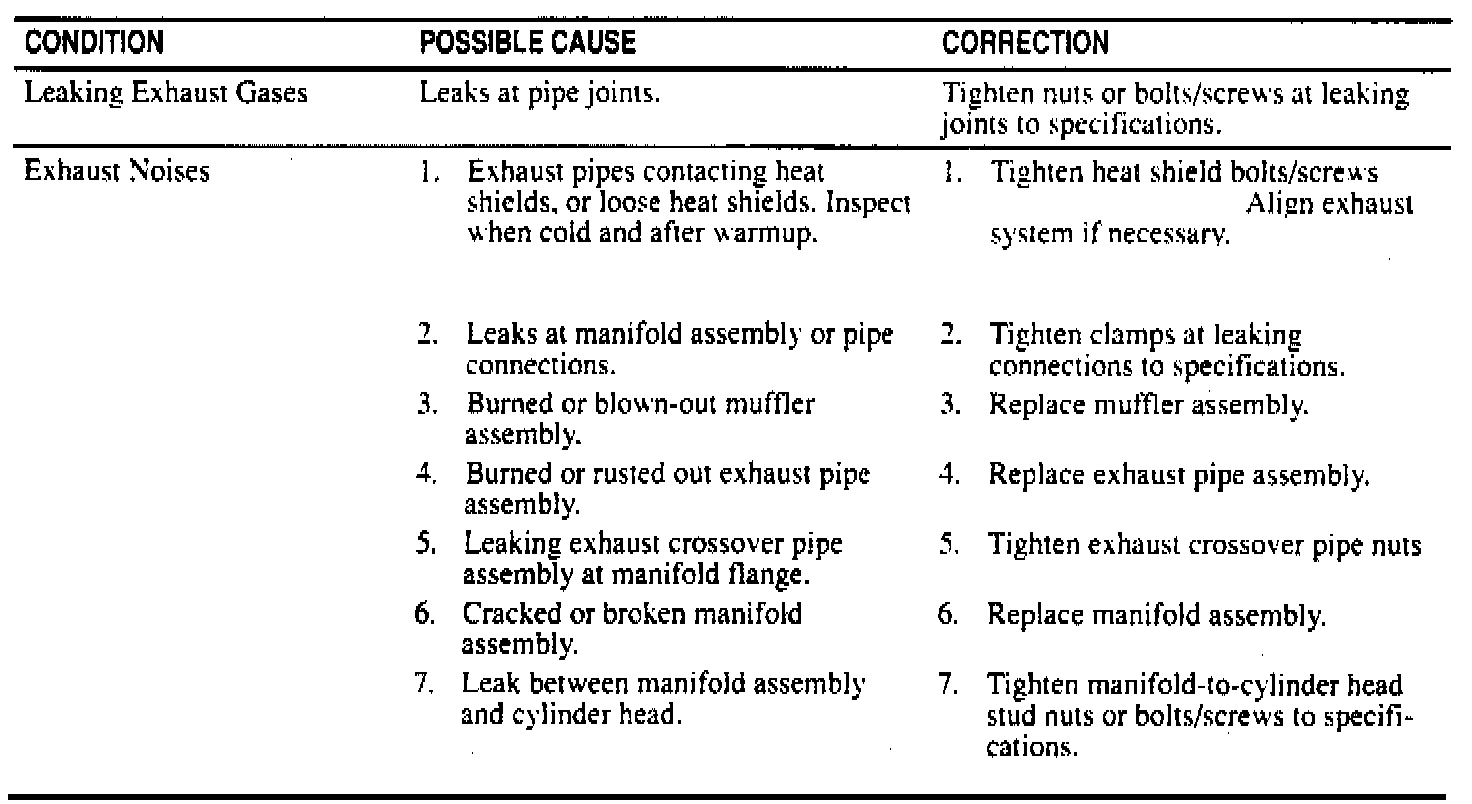

Fig. 4 Exhaust System (Part 2 Of 2).:
