Exhaust Manifold: Service and Repair

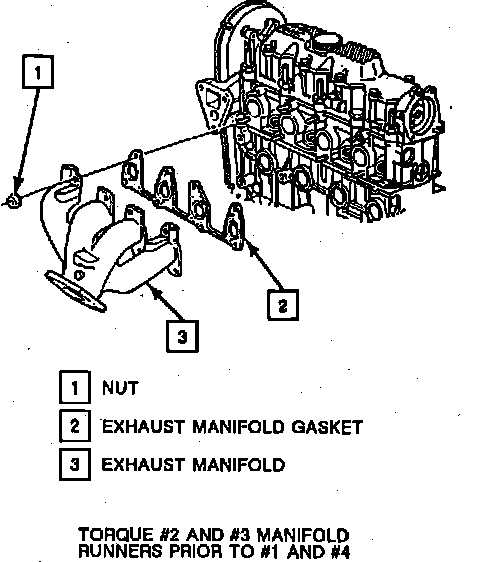

Fig. 4 Exhaust Manifold Replacement:

1. Disconnect battery ground cable.
2. Remove air cleaner, then remove spark plug wires and retainers.
3. Remove oil dipstick tube and breather.
4. Disconnect oxygen sensor electrical connectors.
5. Remove exhaust pipe, then remove exhaust manifold attaching nuts.
6. Remove exhaust manifold and gasket.
7. Reverse procedure to install. Refer to Fig. 4, for manifold bolt tightening sequence. Tighten attaching nuts to specifications.
