Camshaft Gear/Sprocket: Service and Repair

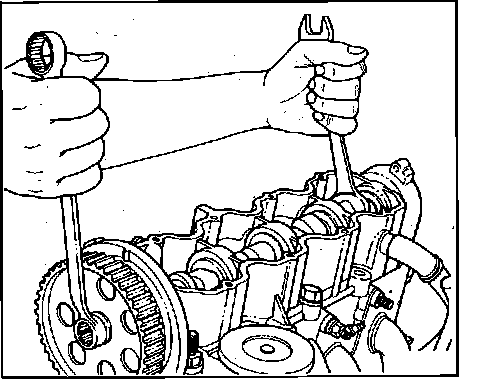

Fig. 10 Camshaft Sprocket Removal:

1. Disconnect battery ground cable.
2. Remove camshaft carrier cover. Refer to Engine / Camshaft, Lifters and Push Rods / Camshaft, Engine. Service and Repair
3. Remove timing belt. Refer to Engine / Timing Components / Timing Belt. Service and Repair
4. Using a suitable tool, secure camshaft and remove camshaft sprocket bolt, washer and sprocket, Fig. 10.
5. Reverse procedure to install. Tighten camshaft sprocket bolt and camshaft carrier cover to specification.
