Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Power Distribution Diagrams >> Light Switch Details >> With Fog Lights

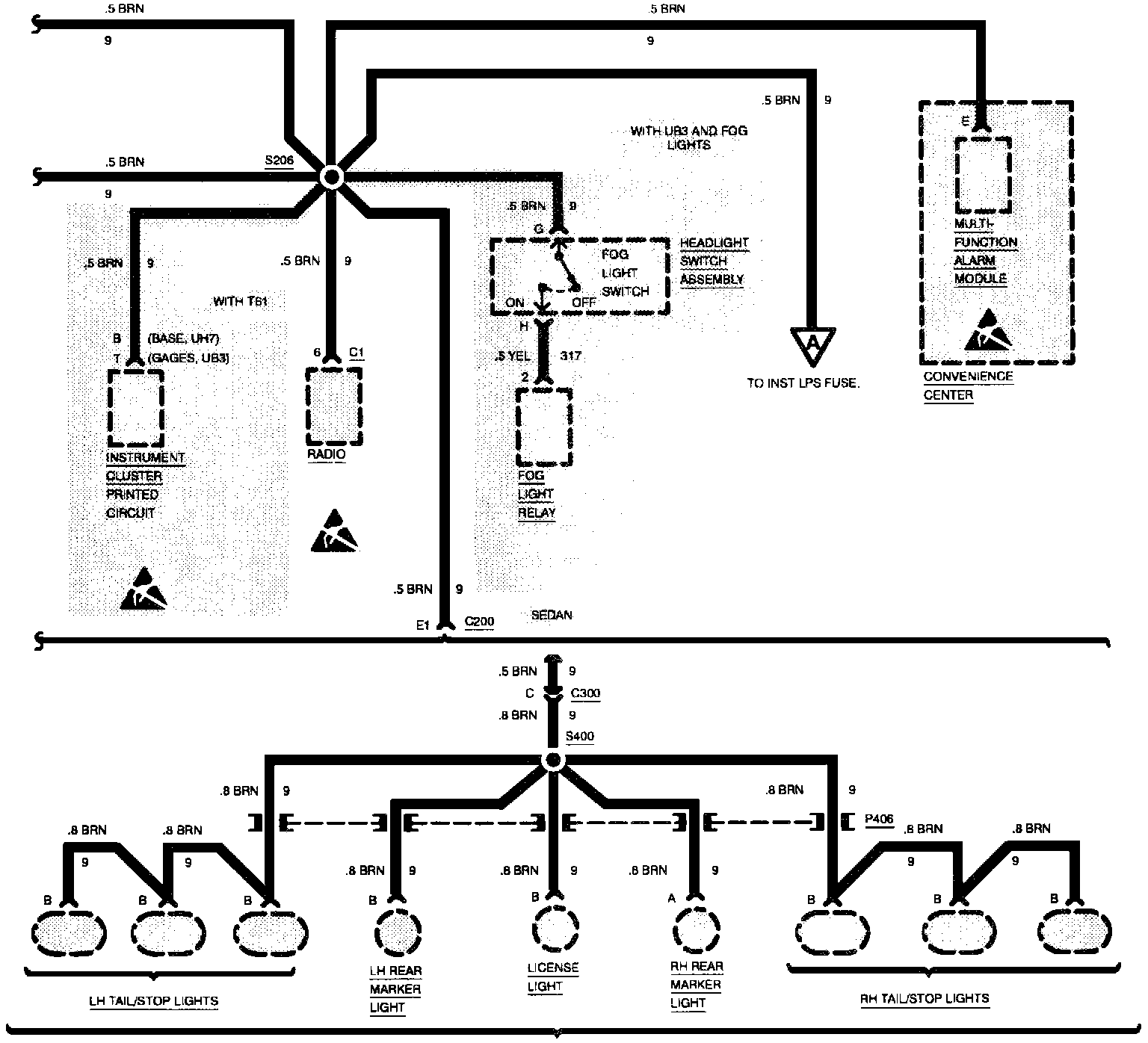

With Fog Lights

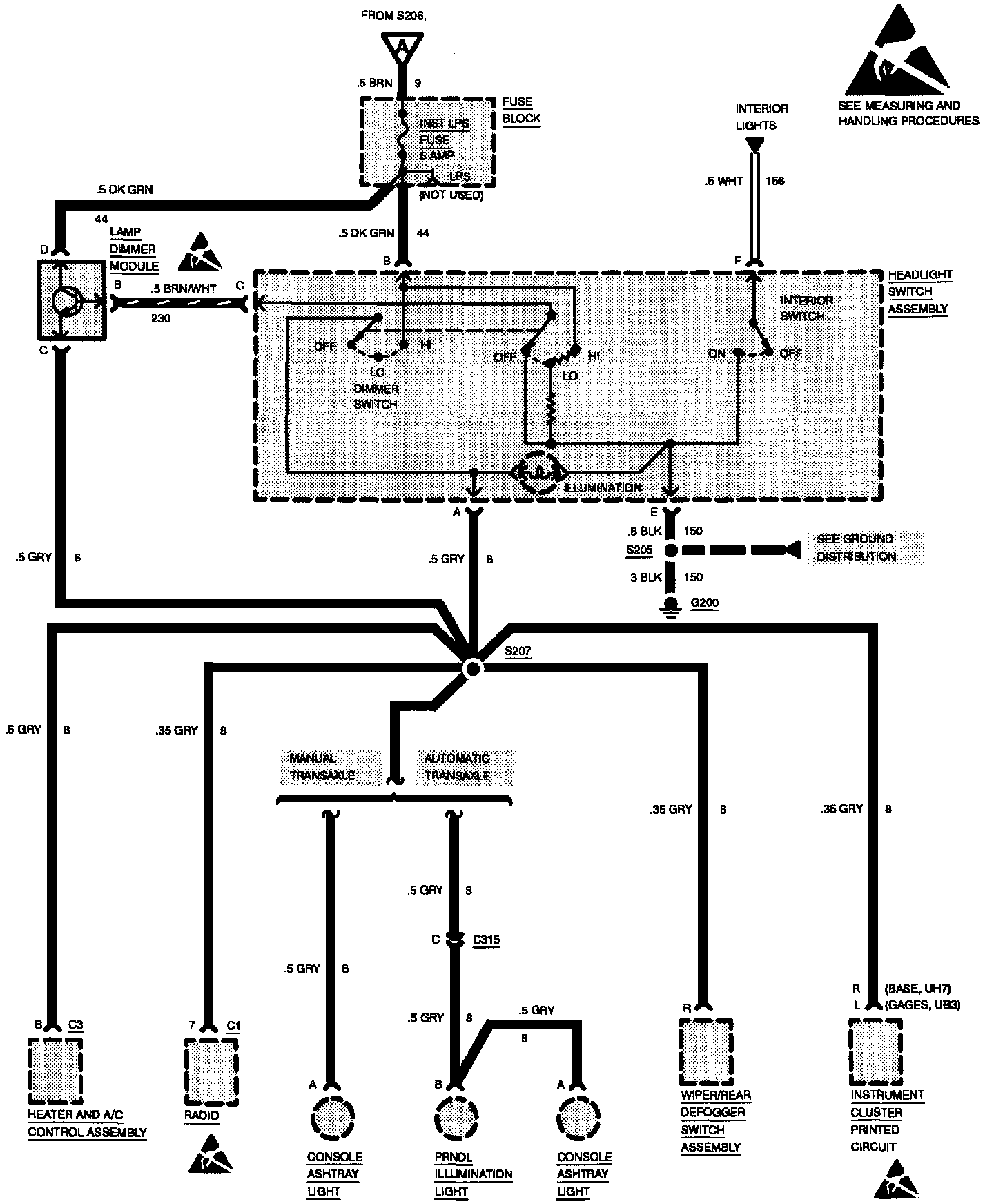

Light Switch Details:

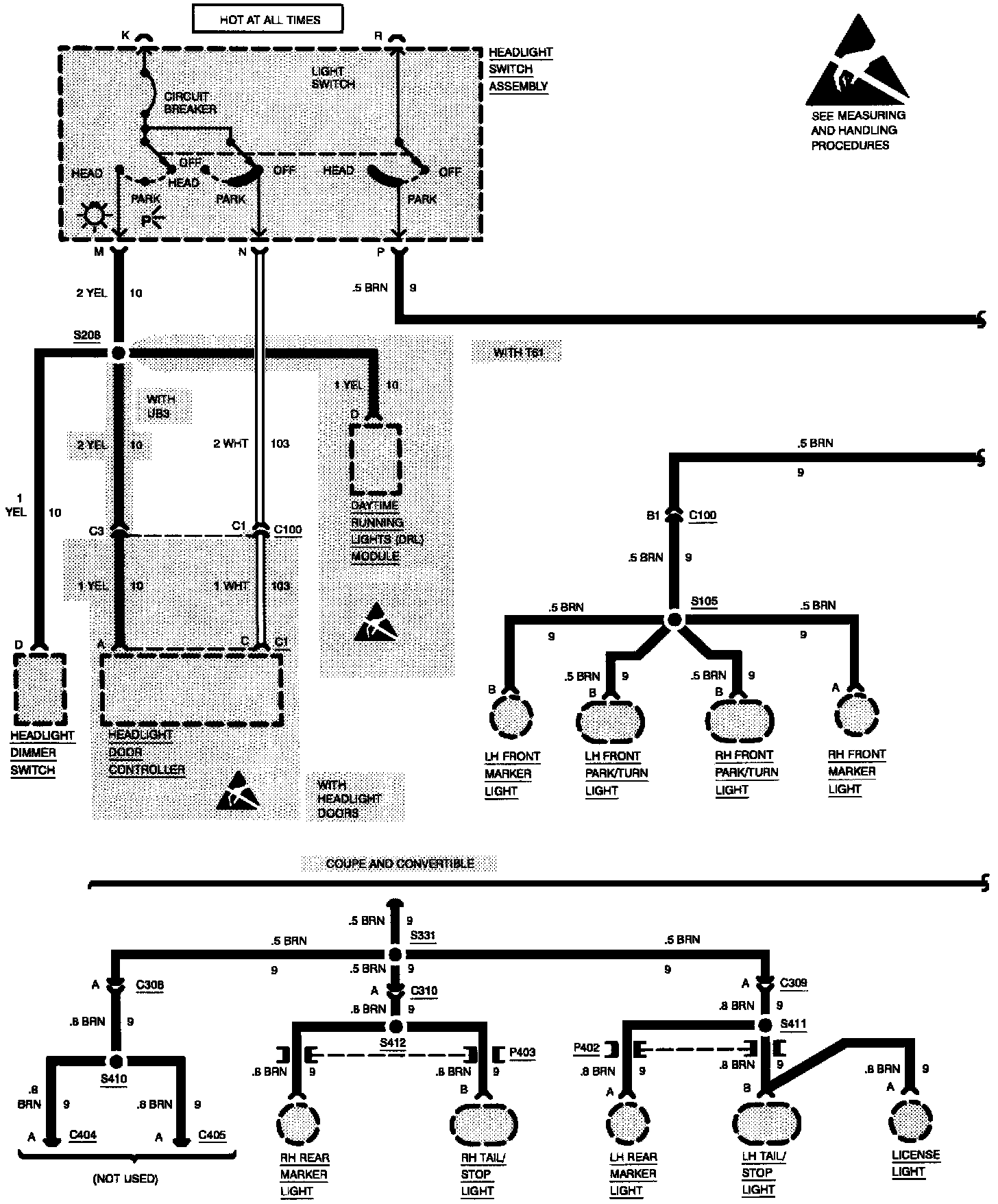

Light Switch Details:



Without Fog Lights:
