I/P Fuse, RDO 2 Fuse and Wiper Fuse
I/P Fuse, RDO 2 Fuse and Wiper Fuse

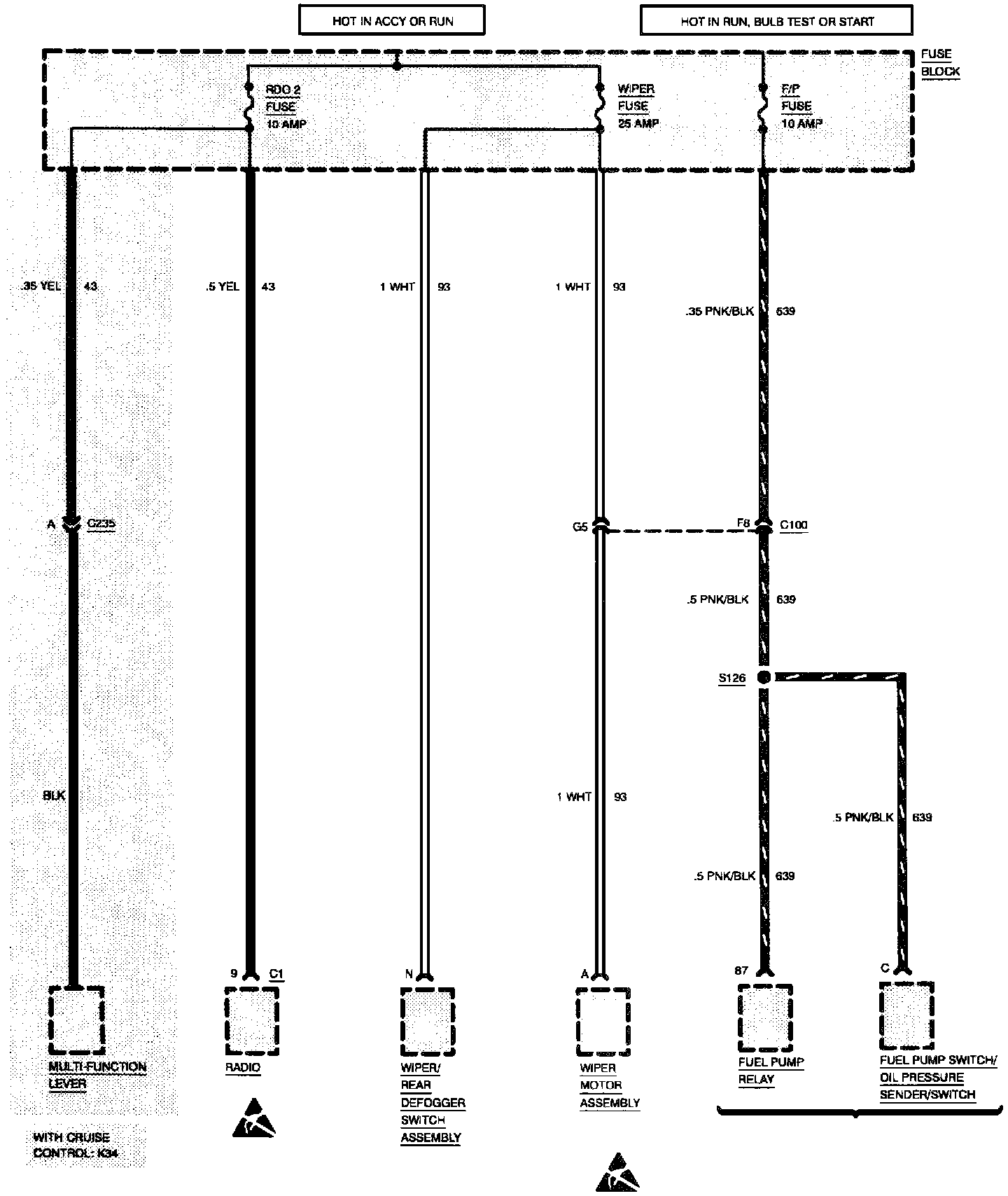

F/P Fuse, RDO 2 Fuse And Wiper Fuse:
