Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Power Distribution Diagrams >> Ground Distribution >> G201 >> Sedan

Sedan

Ground Distribution:

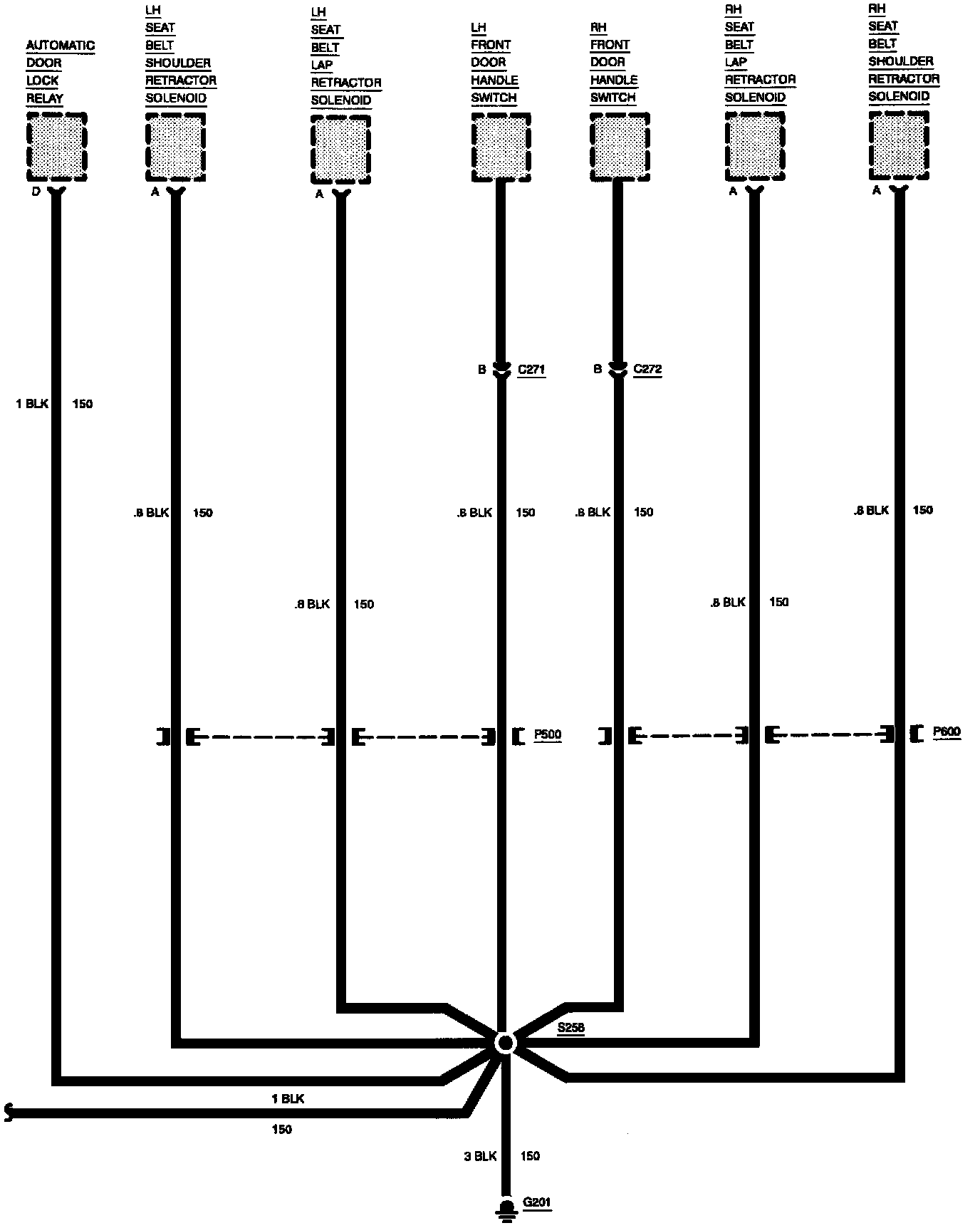

Door Locks And Automatic Seat Belts:
