Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Power Distribution Diagrams >> Ground Distribution >> G104 >> With Fog Lights

With Fog Lights

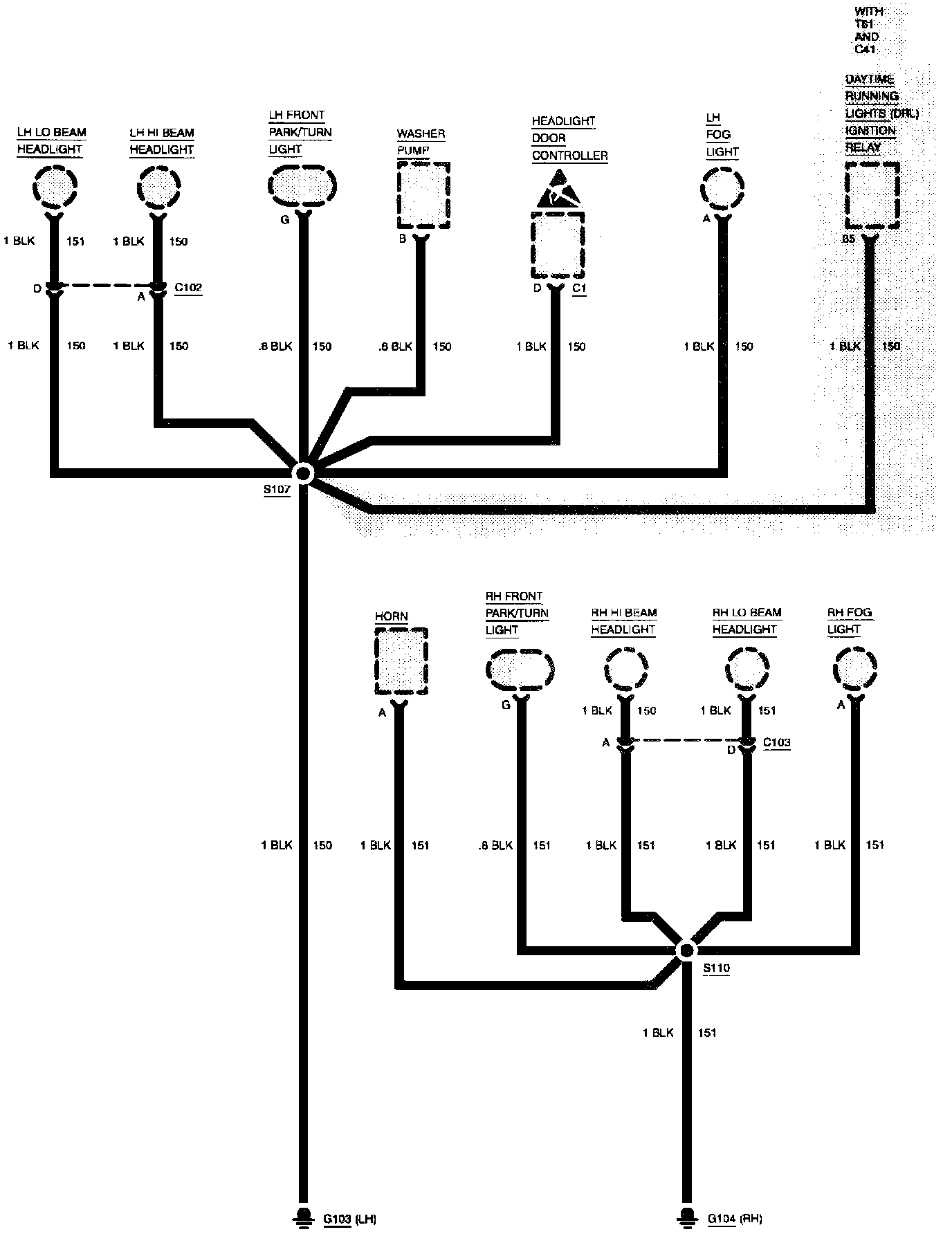

Front Lights Grounds With Fog Lights (Part 1 Of 2):
