Seek/Scan, Clock, Compact Disc

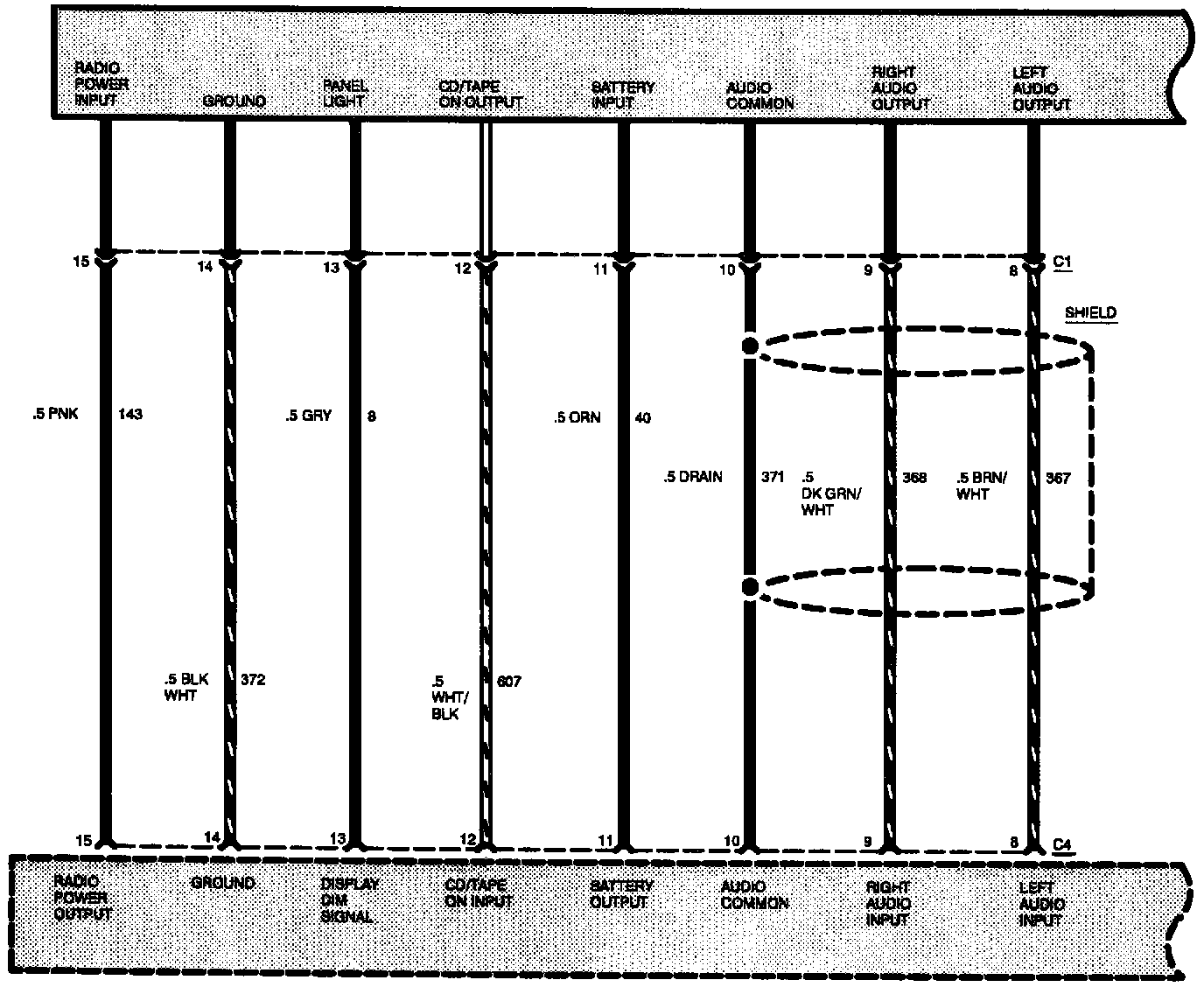

Radio/Audio System: UM7, UN6, And U1C (Part 1 Of 2):

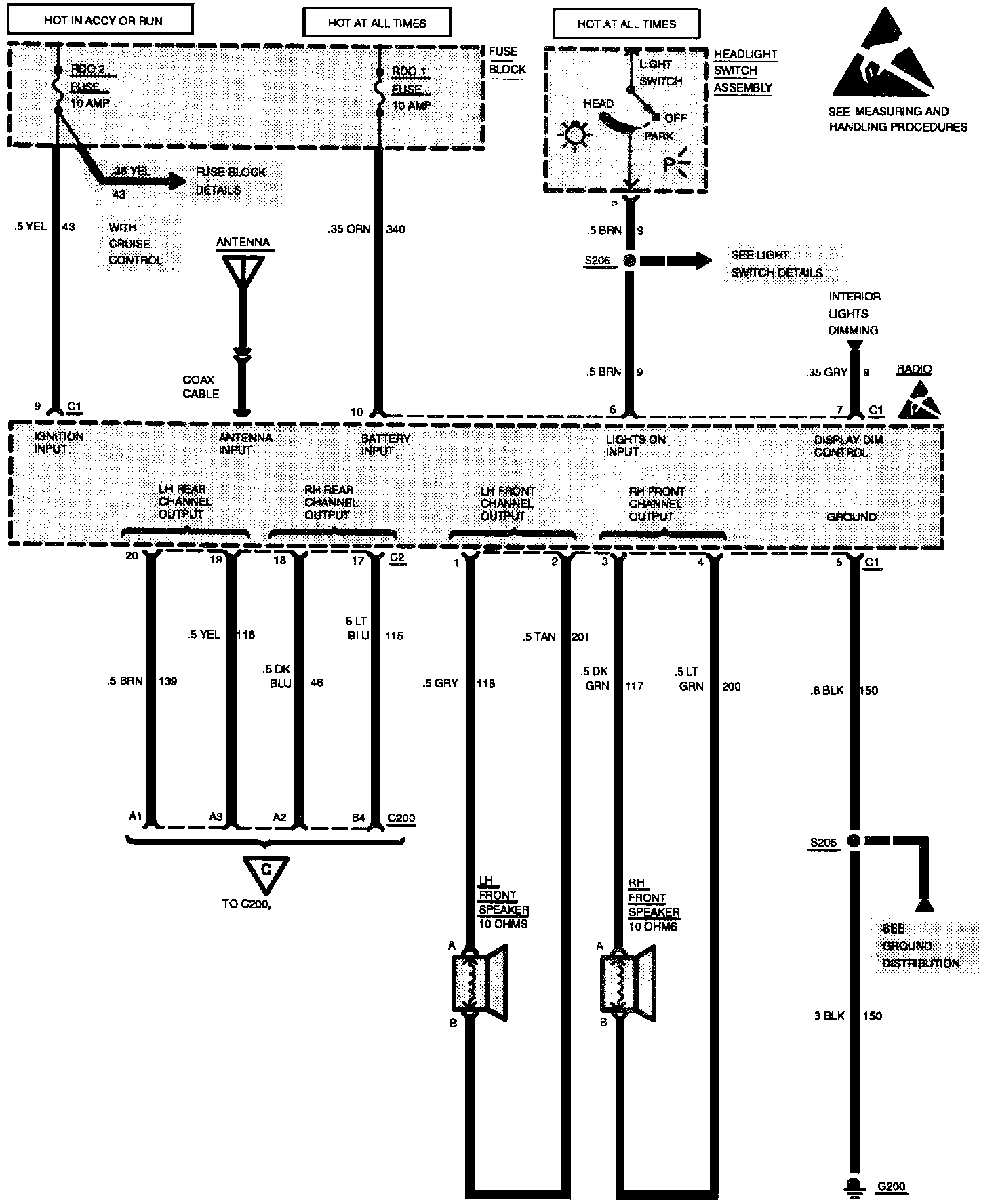

Radio/Audio System: UM7, UN6, And U1C (Part 2 Of 2):

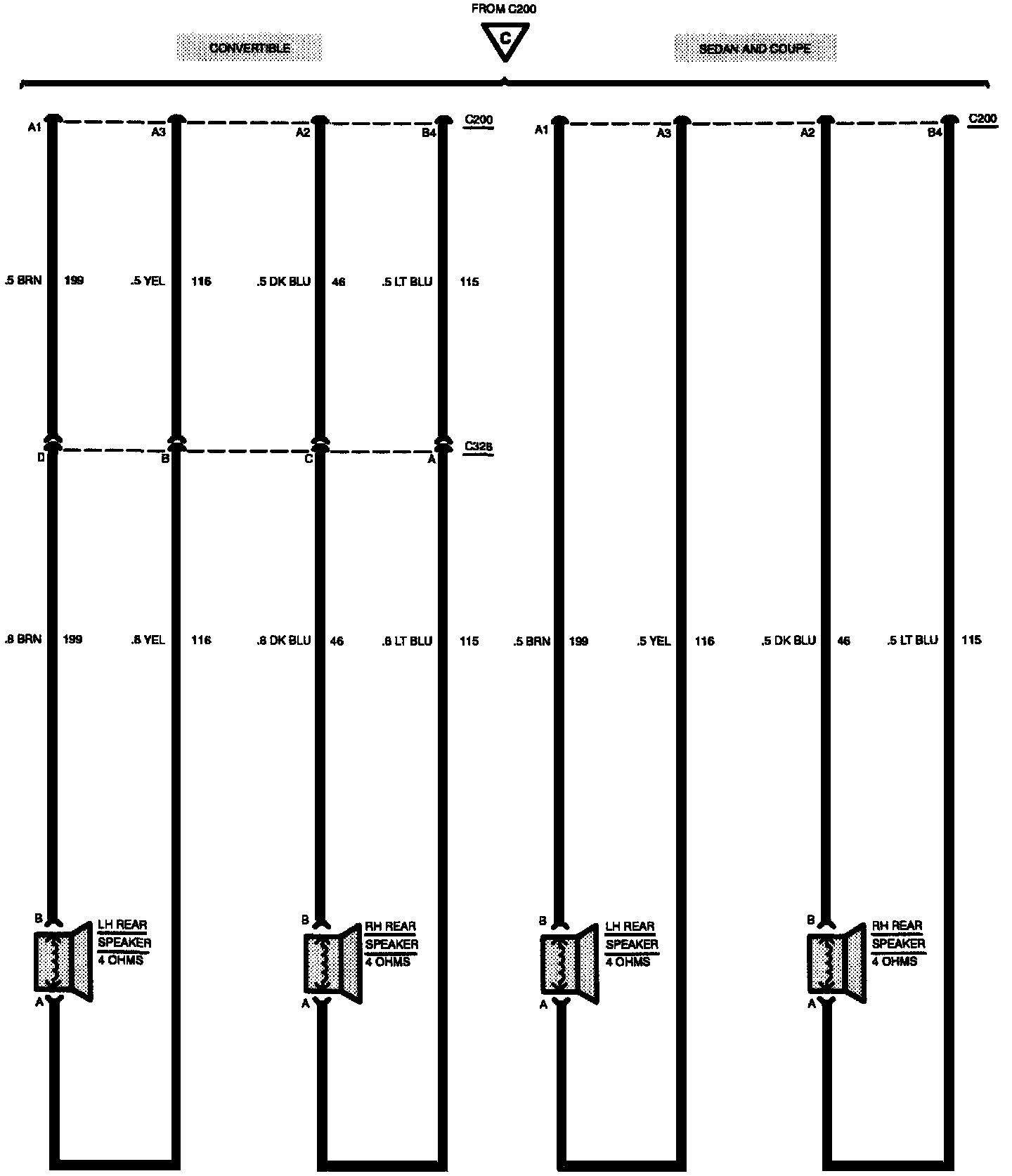

Radio/Audio System: UN6 And U1C (Part 1 Of 2):

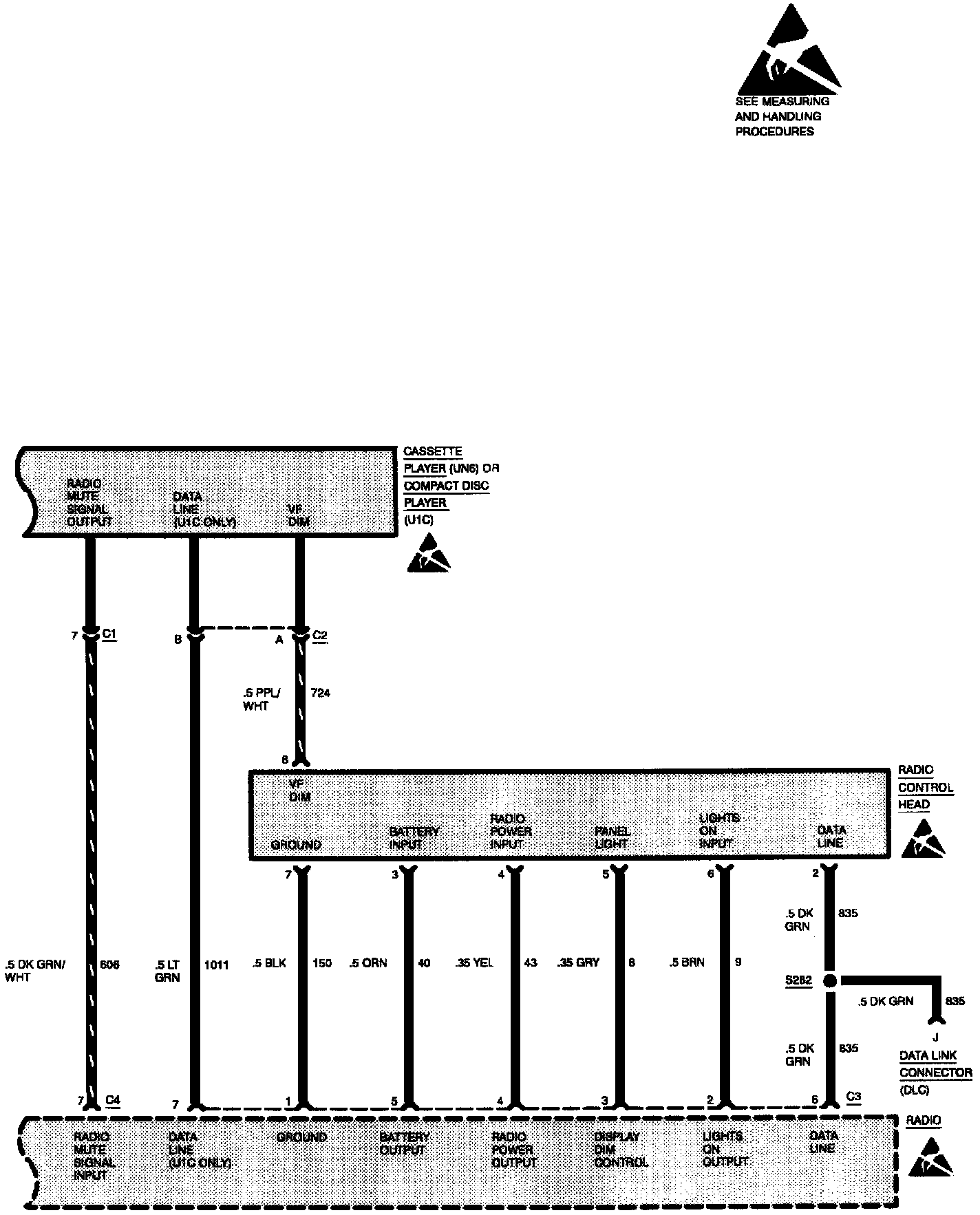

Radio/Audio System: UN6 And U1C (Part 2 Of 2):
