Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Turn Signals >> Turn/Hazard/Front Marker/Front Park

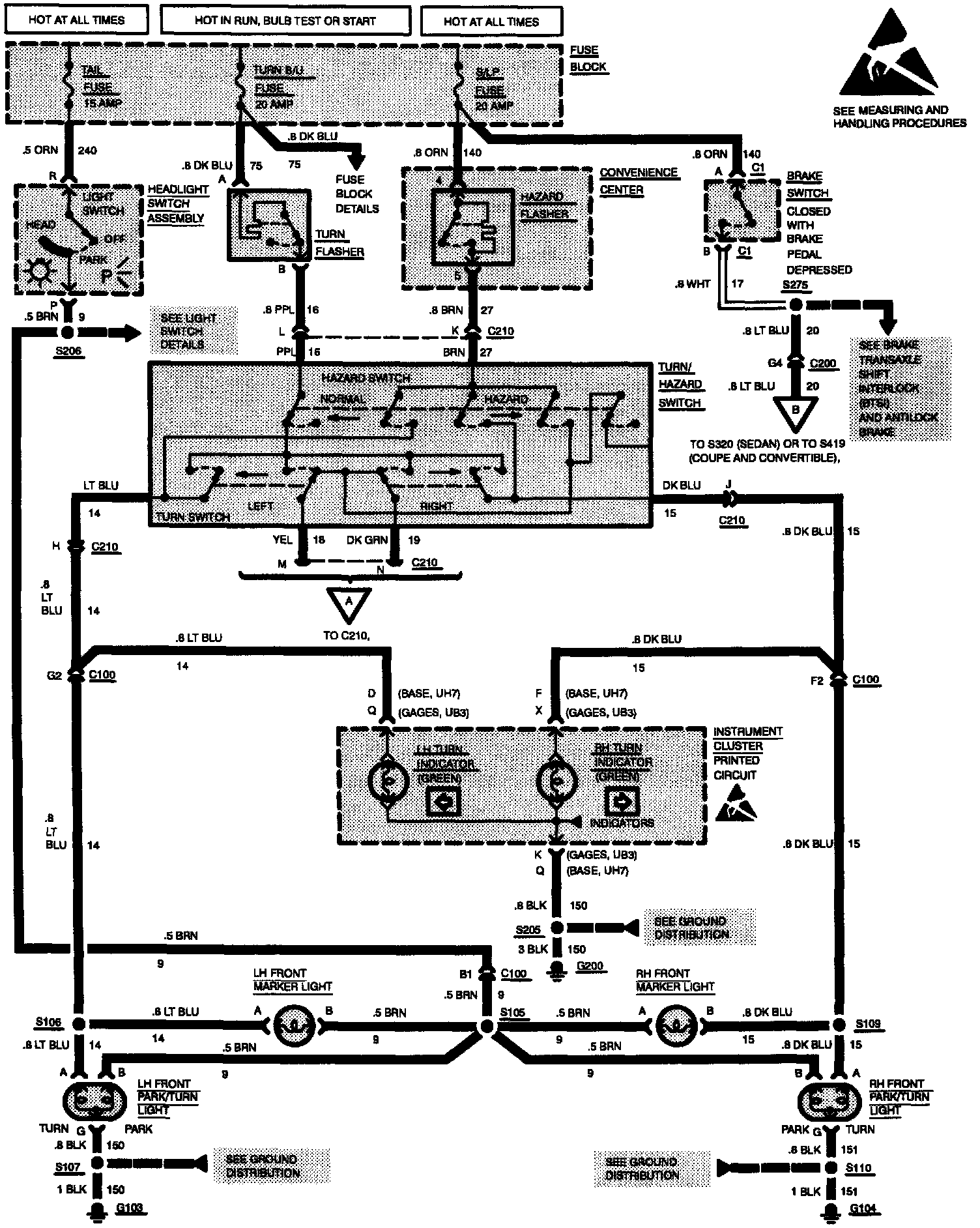

Turn/Hazard/Front Marker/Front Park

Turn/Hazard/Front Marker/Front Park:
