Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Turn Signals >> Rear Turn/Hazard >> Coupe and Convertible

Coupe and Convertible

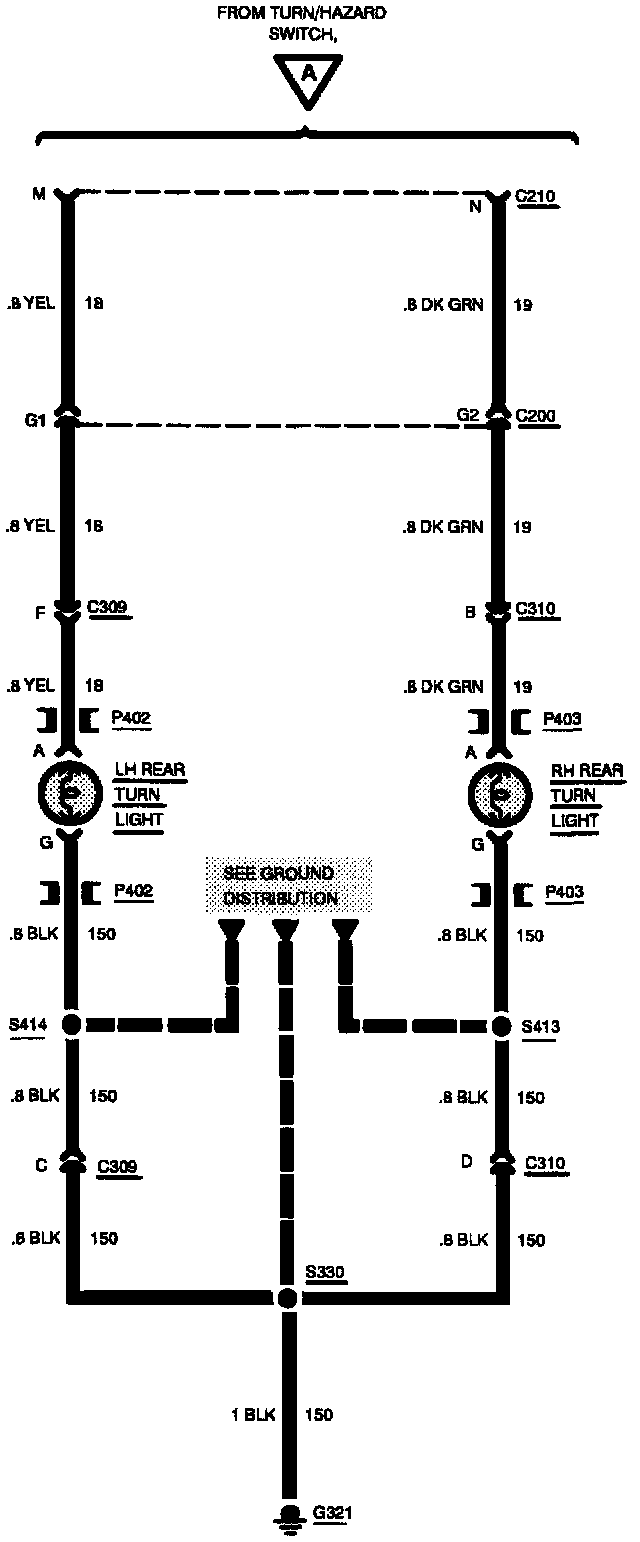

Rear Turn/Hazard - Coupe And Convertible:
