Cigar Lighter/Luggage COMP/I/P COMP/PRNDL Indicator

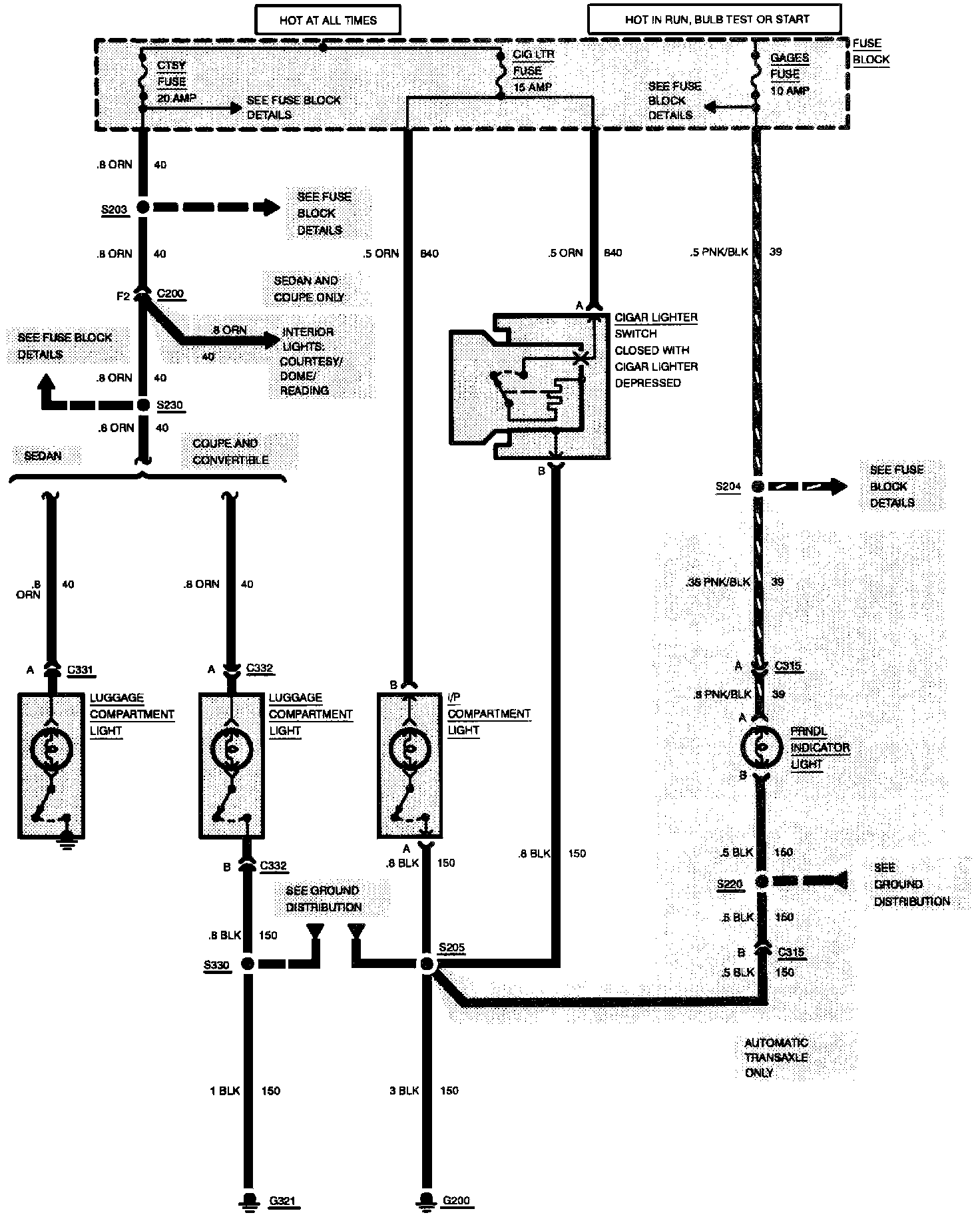

Cigar Lighter/Luggage Compartment/I/P Compartment/PRNDL Indicator:
