Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lamps >> Center High Mounted Stop Lamps >> Coupe and Convertible

Coupe and Convertible

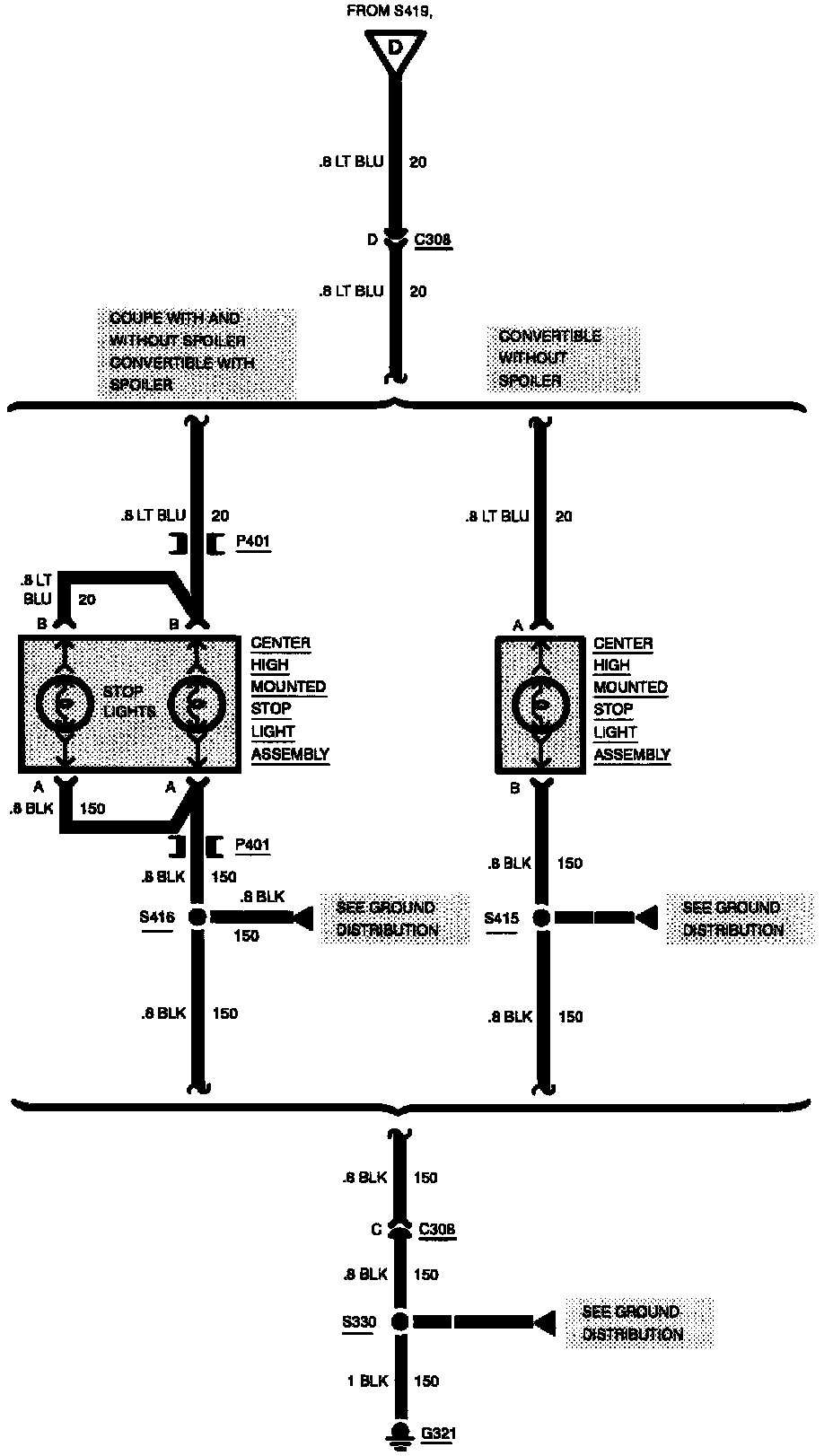

Center High Mounted Stop Light - Coupe And Convertible:
