Radio/Stereo

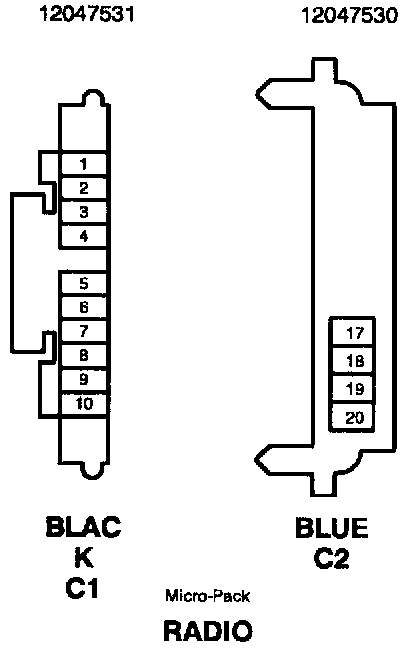

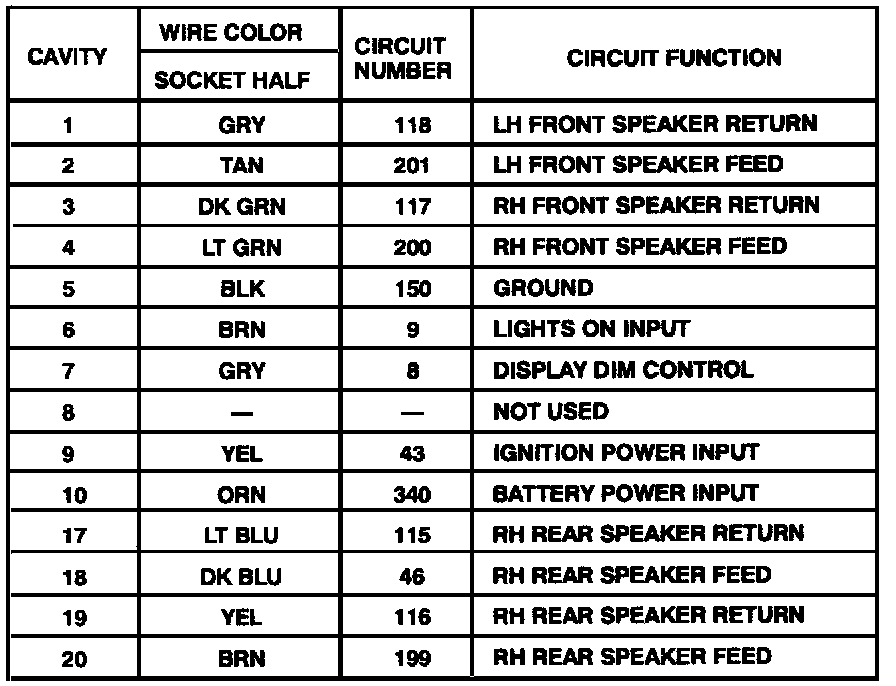

Radio: C1, C2:



Radio: C1, C2:

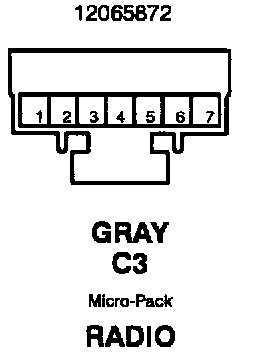

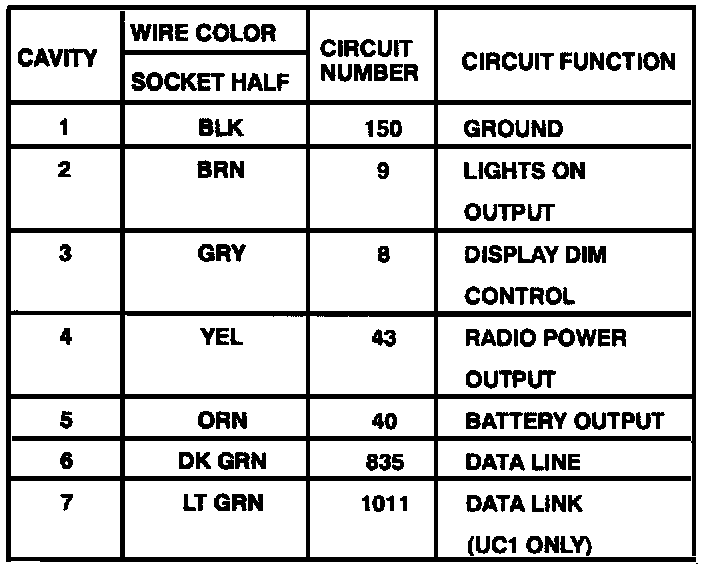

Radio: C3:



Radio: C3:

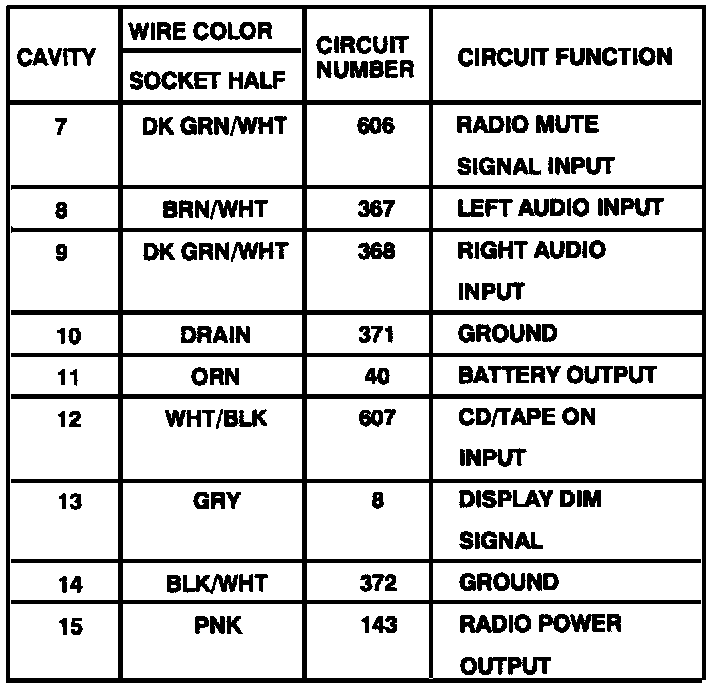

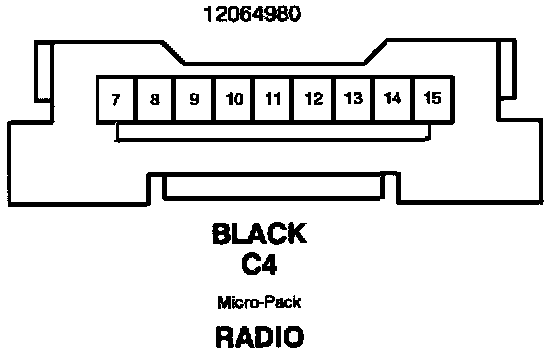

Radio: C4:



Radio: C4:

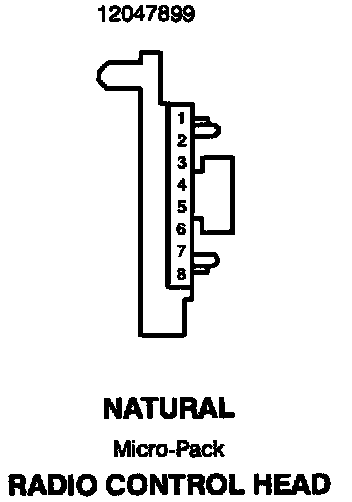

Radio Control Head:
