Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster

Instrument Cluster

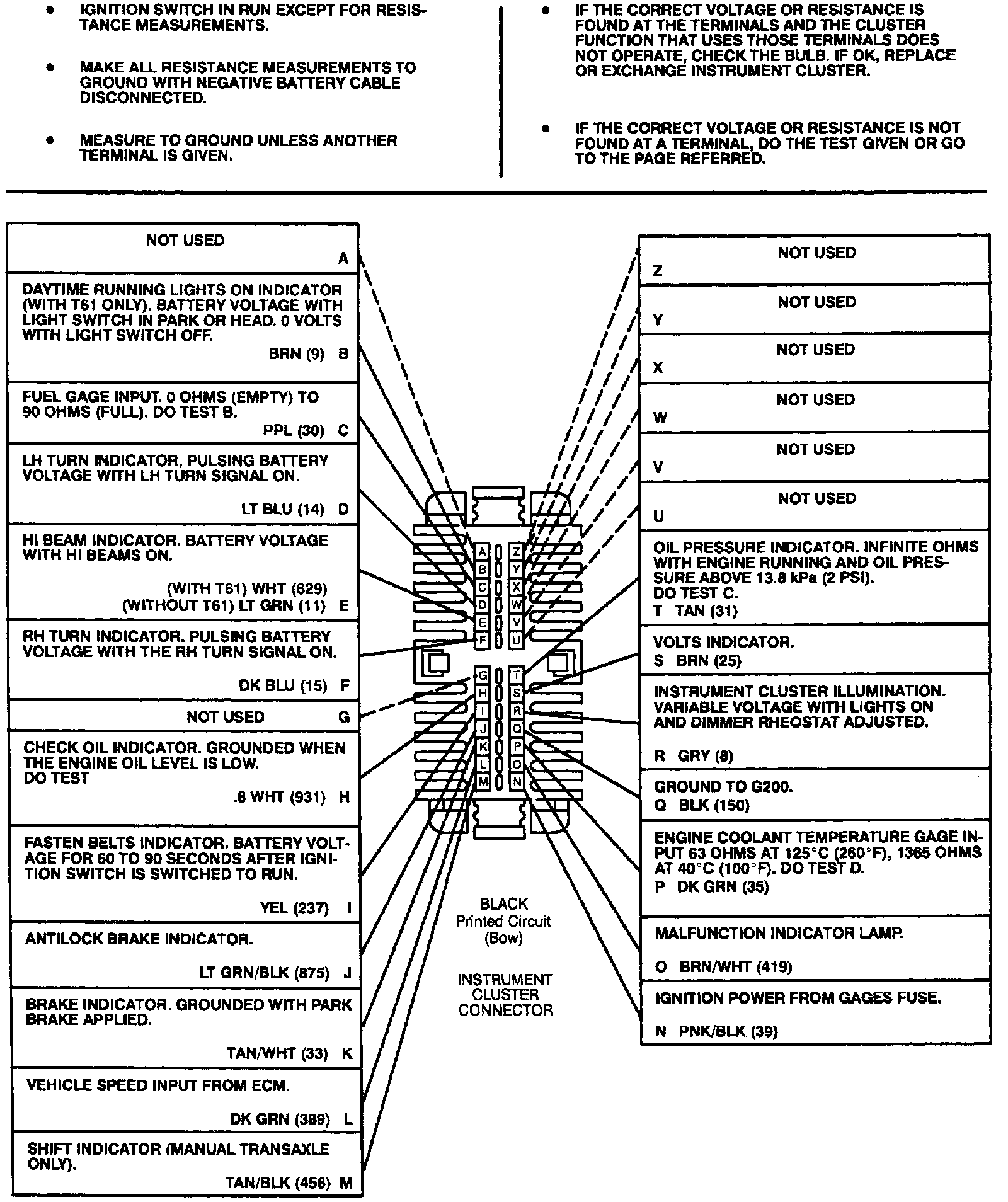

Fig. 156 Test A: Connector Pin Out Test:
