Compact Disc Player (CD)

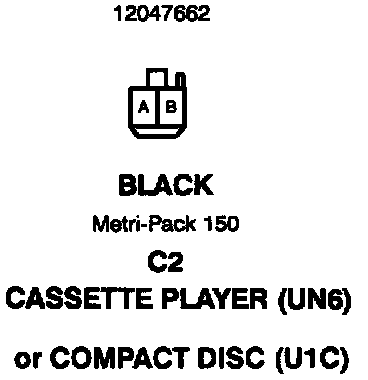

Cassette Player (UN6) Or Compact Disc (U1C):

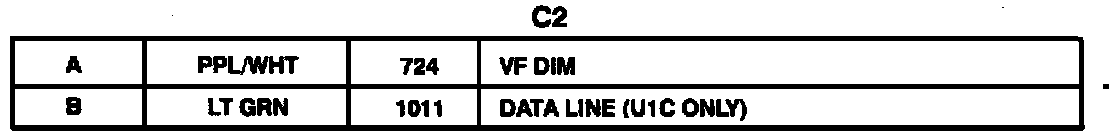

Cassette Player (UN6) Or Compact Disc (U1C):

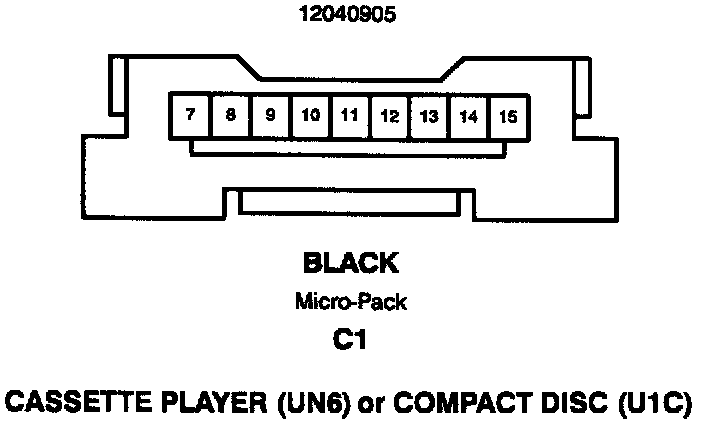

Cassette Player (UN6) Or Compact Disc (U1C):



Cassette Player (UN6) Or Compact Disc (U1C):
